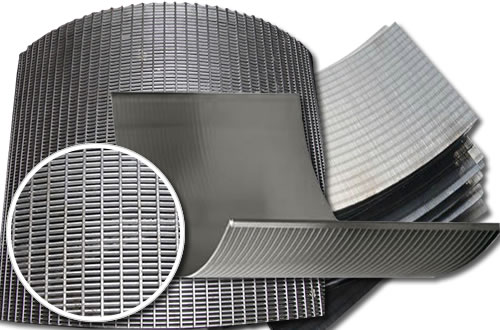

Wedge Wire Screen for Sugar Screen
Wedge wire screen structured sieve bends are especially suitable for sugar mills and flour mill sifting uses.

The wire bends sugar screen has the looped smooth surface offering uniform and accurate slots and mechanical strength unrivalled by other mesh screens.

Sugar Screen Technical Parameters
V-shape wire width(mm): 1.6~4
Screen aperture(mm): 0.2~12
Max Size(mm): 2050x1800
Optional screen plate shapes: Cylinder, Arch, Rectangle, Square, etc.
Materials: 304, 304L, 316, 316L stainless steel wedge wires.

Triangle wire for screening:
Width=1.5mm  Height =4.0mm
Width=2.2mm  Height =4.5mm
Width=2.8mm  Height =5.0mm
Width=3.1mm  Height =6.0mm
Width=3.4mm  Height =7.5mm
Width=2.2mm  Height =5.0mm
Width=2.8mm  Height =6.5mm
Width=3.4mm  Height =7.5mm
Width=5.0mm  Height =10.0mm
Aperture: 0.10mm-10mm
Open area :6.3-57.1%

Triangle wire for screening:
Width=1.0mm  Height =2.0mm
Width=1.5mm  Height =2.5mm
Width=1.8mm  Height =3.0mm
Width=2.7mm  Height =4.2mm
Width=2.3mm  Height =3.8mm
Width=2.6mm  Height =4.3mm
Width=2.9mm  Height =4.7mm
Width=3.2mm  Height =5.3mm
Width=3.6mm  Height =5.7mm
Aperture: 0.2mm-5mm
Open area :6.3-67.6%

We can produce different width, length, slit width and wedge wire size as per your filter flow requirement and filter materials. We can design different frame and carriage, add flange and edge as per your specific requirement.

Perforated Screens for Sugar Mill Aplication
All Screen flat on the floor, no tension and wave, easy to install to centrifuge machine.
Screens used for separating sugar and molasses.

Stainless Steel 304 Perfoarated Screen with annealing before perforating with margin 12 mm at four sides Hole dia. 0.5 mm ; Thk 0,33 mm , Incl. 2 x 12 mm margin at length and width side.
Size : L. 72,75" X W. 22"
Size : L. 72,75" X W. 22,25"
Size : L. 73,22 X W. 22,27"
Size : L. 75" X W. 22,25"
Size : L. 85,20" X W. 21,81"
Size : L. 93,82 X W. 20,47"
Size : L. 96,75" X W. 22,25"
Size : L. 96,45" X W. 20,5"
Size : L. 190 cm X W. 50 cm
Size : L. 217 cm X W. 57 cm
Size : L. 237 cm X W.57 cm
Size : L. 235 cm X W. 52 cm

Stainless Steel 304 Perforated Screen with annealing before perforating fot batch centrifuge , complete with locklap joint and margin 8 mm on length sides
Size : L. 3900 mm X W. 762 mm x thk 0,41/ 0,45 mm Hole dia. 0,5 mm.
Size : L. 3900 mm X W. 800 mm x thk 0,41/ 0,45 mm Hole dia. 0,5 mm.
Size : L. 4230 X 1067 mm X thk 0,41/0,45 mm Hole dia. 0,58 mm.
Size : L. 4500 x 1150 mm X thk 0,41/0,45 mm Hole dia. 0,58 mm.
Size : L. 4810 X 1220 mm X thk 0,41/0,45 mm Hole dia. 0,58 mm.
Size : L. 4100 X 1050 mm X thk 0,41/0,45 mm Hole dia. 0,58 mm.

Working Screen for Krupp Type KB 1750
Size : L. 4967 X 1160 X thk 0,41/0,45 mm, 1 set= 2 shts
Hole dia. 0,58 mm , Total 432 HPSI
Working Screen for TSK V 1300
Size : L. 4340 X 1000 X thk 0,41/0,45 mm
Hole dia. 0,58 mm

Centrifugal Sugar Screen for Sugar Private Industry

Rectangular and plain dutch weave screens, stainless steel or brass, size for standard sieve straining of flour/sugar or tea
SS304 1.5mm x 4mesh 1600mm x 30m 2 selvages
SS304 1.0mm x 6mesh 1600mm x 30m 2 selvages
SS304 1.2mm x 7mesh 1600mm x 30m 2 selvages
SS304 0.3mm x 24mesh 1600mm x 30m 2 selvages
SS316 0.18mm x 60mesh 1600mm x 30m no selvage
SS304 0.12mm x 80mesh 1600mm x 30m no selvage
SS316 0.05mm x 200mesh 1000mm x 30m no selvage

Stainless Steel Wedge Wire Screen Filter for sugar factory

250 micron
width 1000 mm & lenght 50 mtr.

Screen for Refined Sugar
1.37mm. Screen opening X 3350mm. long X 1480mm. width. ( wire dia. 0.5mm approx..)
Screen arranged with J - type clamping @ both ends with nylon seal @ both sides.

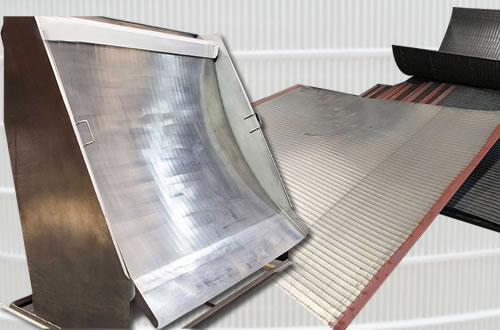

304 stainless steel sieve bends sugar screen 0.1mm-8mm slot width

Sugar Processing replacement sieve bend screen DSM screens

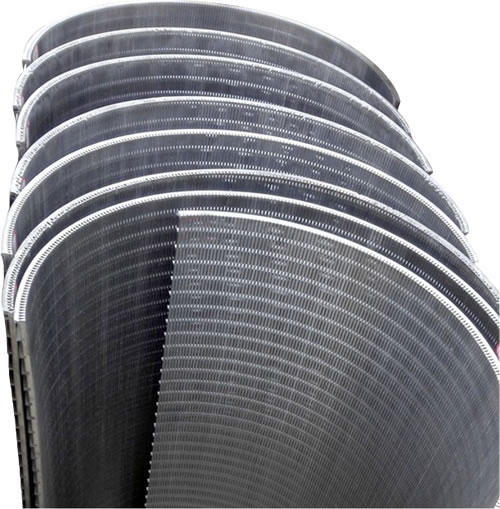

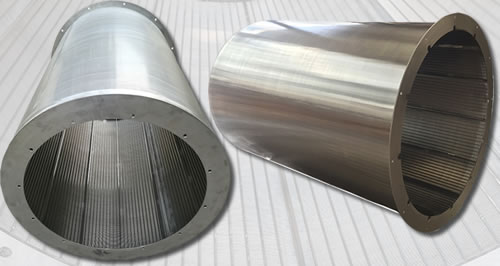

Large Diameter Wedge Wire trommel Drum Screen for Cane Processing

DSM Filter for Sugar Cane Syrup
Wedge wire DSM bend screen to screen sucrose syrup from sugar cane juice to eliminat all foreign matter comming with the syrup afetr the week-end cleaning process of evaporation step.
The Syrup is 70 Brix (1.36 density) 70 and 37 cPoise viscosity Purity 87%.
The normal flow rate is between 40 to 60 m3/h but with some peak up to 120 m3/h.
The particles contain of the syrup in crisis priode (3 hours after starting the evaporators) is 400 mg/Kg of syrup (particles > 71m) include 130 mg/kg paricules > 250m.
This rate going down afeter 3 hours to 20 and 3 mg/kg (>71m) fore the rest of the week opration.

Wedgewire / Profile Wire Structured Sugar Screen Features:
Compact construction, heat resistant, rust-resistant, good mechanism performance, long working life, wear-resistant;
Well-proportioned screen aperture, not prone to jam, increase quality and efficiency of refined powder;
Proper construction, saving time and strength during installation and replacement, i.e. reducing time for installation, examination and maintenance, decreasing labor strength.
