Vibrating sieve screen is mainly used for sifting and sieving, in iron and coal mining and oil industry.
Material: Stainless steel wire.
Weaving and characteristics: Acid-resistant, Alkali-resistant, Heatproof wear and cold-proof.
Variety: Wedge Wire Vibrating Screen; Quarry screen; Single layer vibrating screen; double layer vibrating screen, wave type vibrating screen, high efficiency vibrating screen.

We offer:

Stainless Steel Vibrating Sieve
Width:1500mm
Square hole:0.8mm
Fiber diameter:0.6mm
Length: 10m

Vibrating sieve mesh 110 MESH
Vibrating sieve mesh 140 MESH
Vibrating sieve mesh 175 MESH
Vibrating sieve mesh 210 MESH
Sieve mesh type HOTD RHD 145 mesh
Sieve mesh type HOTD RHD 180 mesh
Sieve mesh type HOTD RHD 215 mesh

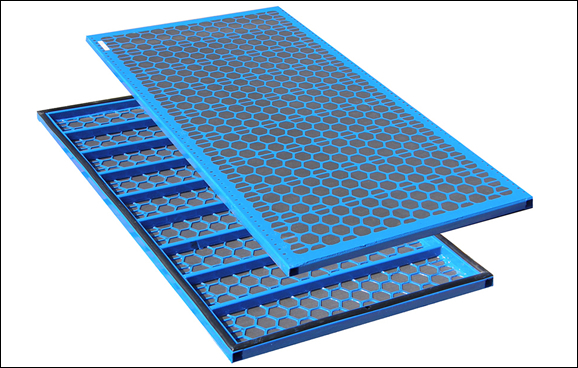

The meshes are used on vibrating screens, for the separation and filtration of the drilling fluid, which engages to the surface the detritus resulting from the dislocation by the drilling rig. These separate the detritus from other mechanical particles in the drilling fluid allowing its reuse and recirculation without stopping the drilling operation.

Sieve Mesh Tehnical specifications
Vibrating sieve mesh 110 MESH
Dimensions (L x W x H)
in inch:49.25x 25 x 1
in millimeters:1251x 635 x 25.4
API class:80
conductive: minus 2.584 kD / mm
filter area:0.50m2
maximum weight:16kg

Vibrating sieve mesh 140 MESH
Dimensions (L x W x H)
in inch:49.25x 25 x 1
in millimeters:1251x 635 x 25.4
API class:100
conductive: minus 1.974 kD / mm
filter area:0.50m2
maximum weight:16kg

Vibrating sieve mesh 175 MESH
Dimensions (L x W x H)
in inch:49.25x 25 x 1
in millimeters:1251x 635 x 25.4
API class:120
conductive: minus 2.045 kD / mm
filter area:0.50m2
maximum weight:16kg

Vibrating sieve mesh 210 MESH
Dimensions (L x W x H)
in inch:49.25x 25 x 1
in millimeters:1251x 635 x 25.4
API class:140
conductive: minus 1.451 kD / mm
filter area:0.50m2
maximum weight:16kg

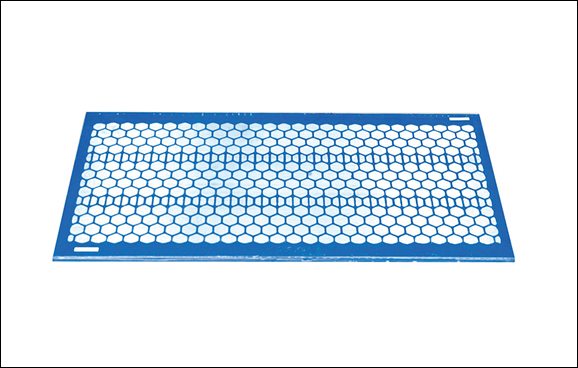

Panel sieve mesh type 145 mesh
Size 1048X699x19MM
Construction: flat
API Class 70
Api value 100 = minimum 201 microns
Conduct = minimum 2.55 kD / mm
Weight = maximum 5 kg

Sieve mesh type HOTD RHD 180 mesh
Size 1048X699x19MM
Construction: flat
API Class 80
Api value 100 = minimum 155 microns
Conduct = minimum 2.45 kD / mm
Weight = maximum 5 kg

Sieve mesh type HOTD RHD 215 mesh
Size 1048X699x19MM
Construction: flat
API Class 100
Api value 100 = minimum 140 microns
Conduct = minimum 2.0 kD / mm
Weight = maximum 5 kg

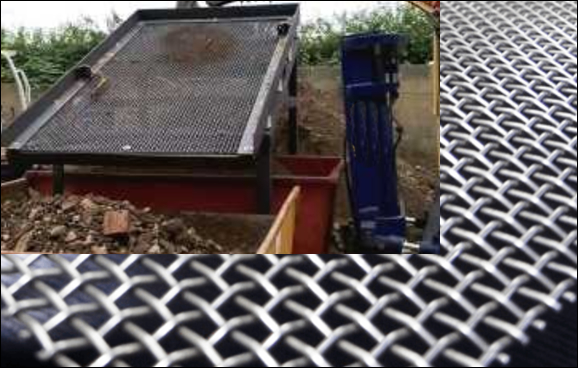

Vibrating Power Screen use to sieve stone out of soil, for vibrating soil screeners

High grade stainless steel weave mesh(19mm x 5x 10) High tensile wire mesh for vibrating screen. Size of mesh 840mm x 1900mm with a 10mm aperture mesh 2.5mm thick wire. Gauge of wire can be made between 2mm and 2.5mm thick, about 2.5mm min. 2mm.

Laboratory Test Sieve for Vibrating/ Sieve Machine for Granule, Powder
Different Screens/ with accessories
Screen frame:1-5 layer
Screen frame diameter: 200mm/100mm/75mm(optional)
Noise: <=50dB
Capacity(one time): <=200g
Amplitude: <=5mm
Vibration frequency: 1420beats/min
Motor power: 125w
Power supply: 220v/50Hz
Dimensions:360*300*736mm

Fully Automatic Platen Die Cutting Machine with sieve mesh screen as parts:
Interface: Touch screen panel to avoid manual adjustments
Maximum sheet size:740mm x 530 mm
Minimum sheet size:420mm x 297 mm
Material (paper/board):80-500 grams per square meter
Gripper margin:6-20 mm
Maximum speed:1,500sheets (multi impositions) per hour
Multi position system: max 10
Automatic size adjustment: should be able to automatically change size from feeder to delivery
Registration through print marks reading: should be able to adjust sheets diagonally or crosswise on the grippers
Pressing time adjustment
Pressing cycle repetition
Quick set up times for short runs
All adjustment through touch screen
Grippers and plates to be removed independently
Including 5 die cutting plates.
Power: 3phase 380 V,50Hz

Wire Mesh Panels for Vibrating Screen
We supply wire woven panels for Vibrating Screens handling coal of size (-)75mm.
Panel Size: 1200mm X 3140mm
Mesh opening: 36mm X 54mm (36mm along 3140mm side and 54mm along 1200mm side)
Wire dia: 12mm
Woven Wire material: Steel HCHT
Panel Frame for woven wire: E 250 Gr. BR, IS:2062-2011

Oil Vibrating Screen Mesh
Vibrating Screen Mesh -35 mesh
Vibrating Screen Mesh- 40mesh
1500*1000 mm.

Mesh for vibrating screen width:950mm
Mesh size 4.5mmx4.5mm
Piece length min. 2500 mm
Width=950mm
Wire dia= 2mm
16 holes in one inch square of mesh.

Perforated Metal Mesh Screen - Tensioned linear vibrating screens
Size: 0.5mm,0.75mm, 1mm, 1.5mm and 2mm
With 20 x 200 double weave (twill) corduroy filter cloth (monel) 0.01" wire dia. 8'-1" wide x 15'-7 15/16" long.
Screen to be cleaned & deburred. 7/16" dia. holes in the screening.

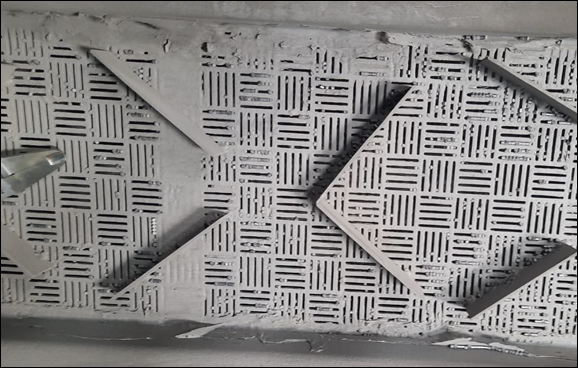

Vibrating screen mesh - slotted hole metal sheet screen

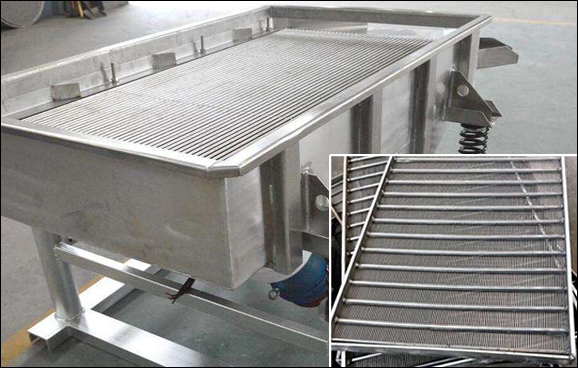

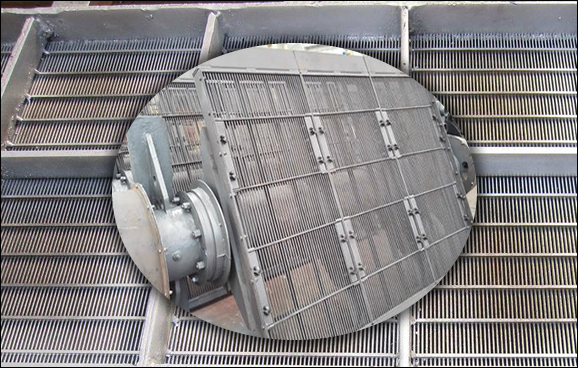

Flat Wedge Wire Screen for Vibrating Screens

Vibrating screen to separate granulated natural rubber from the flow of process water.
Flat metalic screens equipped with perforated stainless steel plates.

Screen plates can be replaced.
Granulated rubber with a minimum dimension of 3,5 mm
Alkaline water
Dimension of the screen: width 1,5 m, length 2 m.
The wires must be installed lengthwise to let the rubber slide down.

Large capacity fine sieving machine linear vibrating screen for sand

Rod Deck Vibratory Screen for Process, offering high performance screening and maximam sorting
