Wedge Wire Water Well Screen for Water Wells Drilling Filter- 4" & 5" Stainless Steel Wedge Wire Well Screen

We are supplier of stainless steel water well screens, in AISI 304L and AISI 316L, exported to the water well drillers all over the world. The common dimensions: OD161, 219, 273and 323mm, in 3, 5 vand 6m lengths. Slots: 0.5 -0,75 -1,0 -1,5mm. Water well screen is used to protect submersible pump from getting damaged from the sand coming from the well.

Altas wedge wire water well screen enjoys the following features & benefits:
Low-Carbon, Galvanized or Stainless Steel construction.
Provide optimum well development and access to the aquifer.
Large open area.
Water enters at lower velocity, reducing screen surface erosion and encrustation.
Designed and constructed to operate under different depth conditions, with the optimum strength/open area ratio.
1" to 26" diameters.
Slot openings from 0.10 mm (0.004") up.
Lengths up to 6 meters.
Welding-ring or threaded ends.
Standard designs for installation depths of 100, 200, 350 and 600 meters.
Other installation depth designs available upon request.

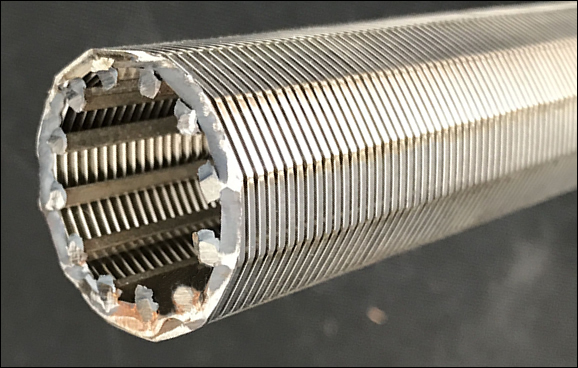

Construction
Manufactured using our unique machinery, developed in-house, and in which a continuous length of profile wire of a triangular section is fusion welded onto support rods.

This 'V' shaped profile wire is wound around the support rods over the full length of the screen thus creating a continuous slot opening.

TECHNICAL DETAILS
Slot (mm)
Standards: 0,25 - 0,50 - 0,75 - 1,00 - 1,50 - 2,00 - 3,00.
Customized slots
Materials of Construction:
AISI 304 & 316 grade Stainless Steel, Low Carbon Steel, Galvanized Steel
Screen lengths (metres)
Standard lengths : 2,90 m & 3 m or 5,80 m & 6 m (for others, please contact us).
Screen end-fittings

Water well screen pipe
Pipe -8" Dia
Water Flow-150,000 LPH
Water Well Depth -150 feet
Type of Casing and end connection- Threaded.

4" & 5" Stainless Steel Wedge Wire Well Screen
Well Screen Length: 2 m x 20 pieces
Slot size: 1mm
Both Ends: Male / Female threaded ends
Uses: To be installed inside existing 6" Water Well.

Water Well Drilling Filters
Slotted stainless steel screen strainer, material aisi 304, size 8in x 3,00 meters length; minimum rod quantity 44; opening percent 31-33%; filter shall support 7 tons load in weight, in vertical direction; bevel ends for welding.


Water well screen pipe. stainless, .377, coupled. total 20'. 2x10

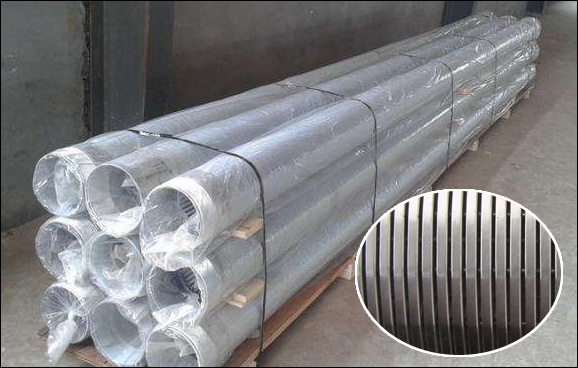

SS 316L water well filter wedge wire screens

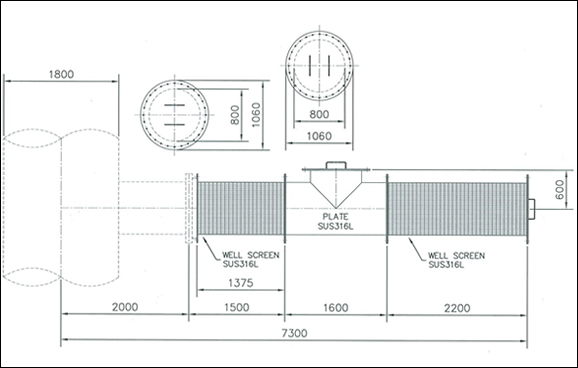

Water well screen 800 mm SUS 316L + tee

Uses:
Filter water tubing is used with the deep well pump, water diving pump, also may use in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment and the petroleum industry as terminal filters and the chemical acid, the alkali liquid filters, the ethyl alcohol and organic solution recycling filters.

Other Types of Water Well Screen:

UPVC SCREEN FOR WATER WELL
Upvc water well screen. Heavy duty range , 8" ID x 6m long threaded type. Buttres slot size 2mm square.

We also supply Perforated Bridge Water Well Screen.
