We supplies more shapes of wedge wire tube,wedge wire filter strainers, wedge wire basket cylinder can be reinforced with rod type and frame type used for filtrating solid from liquids.
Wedge wire screen tube with working profile and a support profile, the support profiles welded on the working profiles used as water well screen filters, slot hole from 0.1mm-10mm. Supplying forms are curved sieve bends, flat panels and cylindrical filter tubes.
Wedge wire tube screens with 400 mm diameter and about 600 mm length. AISI 304. The gab or the slot should be 1 mm.
Standard size of tube screen is mentioned dimensions
Wedge Wire Screen Tube
Wedge wire screen tube 1.75" in diameter with the Wedge Wire being a #60 profile out of 304 stainless steel as well as some out of 316 stainless steel. the length needed is varying.

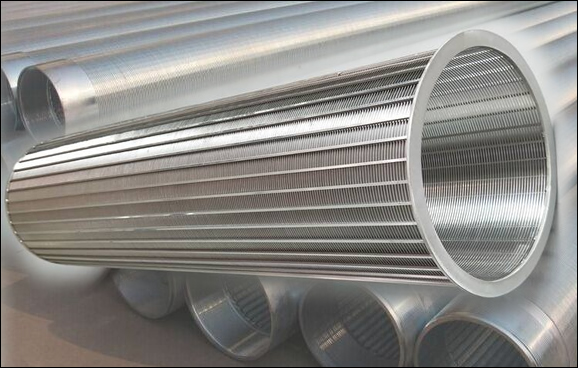

Stainless steel slot tube, wedge wire filter
FOTI wedge wire screen cylinders slotted tube
FOTI x 78mm OD x 1200mm Long x 100 micron slot x SS316
FOTI x 78mm OD x 1200mm Long x 25 micron slot x SS316
FOTI, 60mm OD x 1200mm Long x 100 micron slot
FITO,125 to 128mm ID x 1200mm Long x 100 micron slot SS316
Collapse pressure; bar , burst pressure: bar., Open Area : % .
Higher open area with reasonable collapse pressure.
Slot may be radial type....
So far axial slot will be costlier
In all FOTI cases, out side surface should be smooth & any support bar may be at inside only.
In FITO case, Inside surface should be smooth & any support bar may be at outside only.

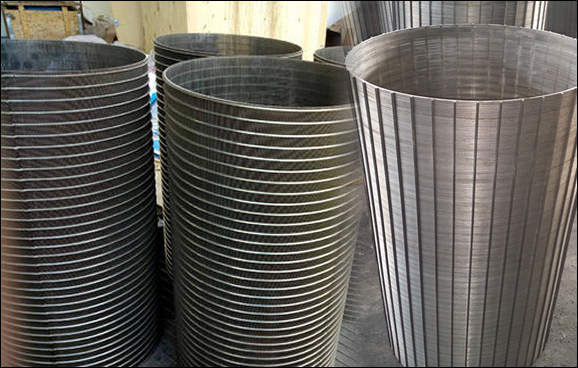

Wedge Wire Screen Cylinders Tube screen
Wedge Wire Screen Cylinders( Tube screen).
Diameters: 24"(600mm), Length: 120"(3000mm).
Slot open: 0.039" (1mm).
Material: SS304.
Half-cylinders or full tubes
Clamshells (half-cylinders) of perforated stainless steel with the following specs:
3" inner diameter.
3/16" holes, 1/4" separation, 60 deg. staggered (51% open)
Also full tube would cost with the above specs.
Wedge wire pipe cylinder
Model : standard external circumferential
Type : V type shape wire wedge screen tube
Material : ss.304
Size : 2,5 inch
Length : 6000 mm
Wedge wire tube for column strainer
SS316 L
Hastelloy C
Both slot must be 0.5mm and wire thickness preferably 2.5mm to 3mm.

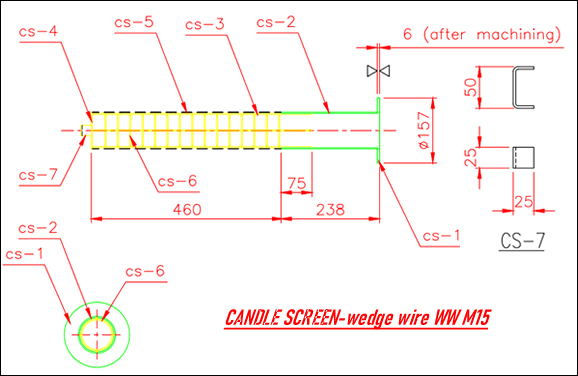

Herewith the drawing infomation.
We supply the wdge wire part for both material mentioned as above
cs-1 | Ø157/Ø89 * 6 end plate flange | hastelloy |
cs-2 | DN3" S10S pipe | hastelloy |
cs-3 | Ø3 rod (welded to end plate & pipe) | hastelloy |
cs-4 | Ø90 * 3 end plate | hastelloy |
cs-5 | wedgewire WW M15 | hastelloy |
cs-6 | Ø3 rod (rolled) | hastelloy |
cs-7 | 3 thk bend plate [see detail] (welded to end plate cs-4) | A36 (tubber lined) |
cs-1 | Ø157/Ø89 * 6 end plate flange | SS316L |
cs-2 | DN3" S10S pipe | A312 - TP 316L |
cs-3 | Ø3 rod (welded to end plate & pipe) | SS316L |
cs-4 | Ø90 * 3 end plate | SS316L |
cs-5 | wedgewire WW M15 | SS316L |
cs-6 | Ø3 rod (rolled) | SS316L |
cs-7 | 3 thk bend plate [see detail] (welded to end plate cs-4) | SS316L |
Wedge Wire Screens (Discs and Tubes)
Kindly find below our requirements for wedge wire screens (discs and tubes). Kindly send us your best quote including freight (including FOB New Delhi) and the earliest delivery time.
Please note that the first item we require 200 micron, and for the remaining items, we require 350 microns. Kindly quote accordingly.
OD | ID | Length | MOC | Quantity | |
1 | 31.36 | 25.6 | 130.5 | SS316 | 10 PCS |
2 | 109 | 81 | 780 | SS316 | 12 PCS |
3 | 92.8 | 69.57 | 795.16 | SS316 | 10 PCS |
4 | DISC TYPE WIRE SCREEN: DIA: 134.5mm, THICKNESS: 10.75mm. | ||||
MOC: SS316L, QUANTITY REQD: 650 PCS |
RFQ - JS0820-0 wedge wire tubes.
Could you please advise price and availability for items below:
92 off Wedge wire screen tubes, 73 OD x 1600 Long. 50mm weld ends with o-ring grooves on both sides.
Micron Size: 40 Micron Slots.
92 off Wedge wire screen tubes, 73 OD x 1600 Long. 50mm weld ends with o-ring grooves on both sides.
Micron Size: 500 Micron Slots.
Material of construction: UNS S31254.
Please advise open area % and collapse/burst pressure for tubes offered.
Wedge Wire Screen
We are centrifuge decanter manufacturer in Türkiye.
We are looking for screen baskets for our screen bowl decanter centrifuge. Do you have any samples for it which is similar to attached drawing.
If not can you make us for it with attached drawing dimension.
The feeding slurry has 50 percent by weight coal solid. And this solid have a particle size smaller than 20 micron.
