Wedge Wire Screen Machinery and Production Line

Atlas manufactures and supplies machines for making wedge wire screens for coal mining and water well applications.

We supply wedge wire screen machines to India, Sri Lanka, Vietnam, Bahrain, South Africa and other countries.
We will provide detailed technical information of wedge wire machines with Estimated price for the equipments and estimated price for the technology.

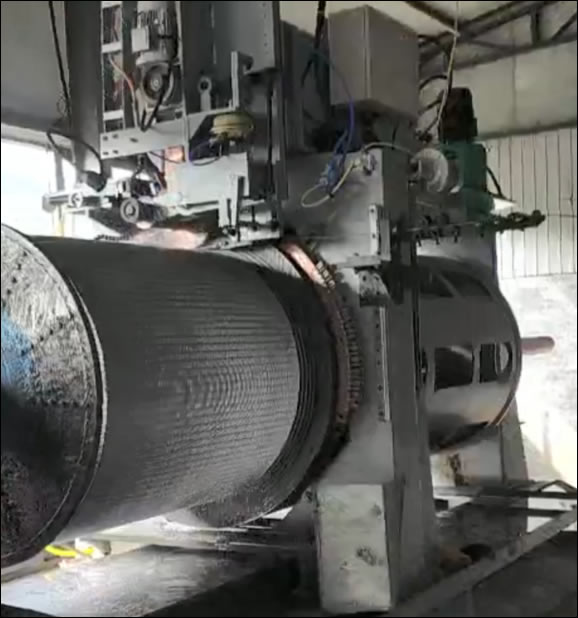

Wire wounded wedge wire screen machine
Wire wrap wedge wire for bore-well screen making
MACHINE for India project

Production line for Johnson Vibrating Screen for Mining
MACHINE for Vietnam Coal-Mineral Industry
Equipments for producing Centrifugal Screen baskets for separating in coal factory.
We provide the equipments together with detailed technical instruction:
- Profile for each type according to the size
- Input materials types
- General plan for the technology
- Electricity consuming, chemicals and other materials to produce one square meter.
- Workers numbers required

Continuous Wedge wire Welding Machine
For South Africa manufacturer of continuous winding wedge wire screen in ss and carbon steel galvanized material.
Used to produce wedge wire screens including but not limited to following sizes:
SS 304 parabolic wedge-wire screens with apertures of 0.3mm, 3mm & 5mm
Material of Construction : SS 304.
Application: Screening of wastewater.
Flow rate for 0.3mm screen: 200 cubic metres per hour.
Flow rate for 3mm screen: 400 cubic metres per hour.
Flow rate for 5mm screen: 200 cubic metres per hour.

Wedge Wire Screen Machine
Machine for wedge wire screen manufacturers in Bahrain
Used to produce Wedge wire screen cylinder:
Screen type = cylindrical
Screen material = hastelloy C276 or SS316L
Materil type = wedgewire
Materil grade = WW M15
Screen aperture size = 0.5mm
Screen diameter = 80mm
Screen length = 460mm
