Wedge Wire Screen, Arc Sieve, Rotary Filter, Vibrating Screen Filter Elements and Strainers

Atlas delivers fabricated and configured wedge wires in various forms, mostly stainless steel wedge wire cylinders, tubes, centrifugal baskets, flat stainless steel wedge wire and curved panels, sieve bends, rotary screen and vibratory screen.

Wedge Wire Cylinders and filter tubes can be designed with slot openings and wires running on the outside surface of the screen cylinder, with diameters from 1/2" pipe size to 35". It can be fabricated from SS of various grades and LCG, with intersection of wedge wire and support rod firmly welded. Various combinations of wire and rod can be used to produce the best screening cylinders and tubes.

Rotary Screens and static screen typically use wedgewire for the filtering media.

Features of Wedge Wire Screen:
A continuous slot opening which significantly increases the available open area, thus providing a greater access to the water bearing zone.
Avoids clogging and ensures uninterrupted flow.
Ladder-like wire welded screens have the features of easy backwashing, last long, safety and reliability as well as low comprehensive cost.
Styles of connection: by welding or by threaded male/female coupling.
Standard length: 1m-5.85m

Cylinder and Tubes Uses:
Cylinders are used as rotary screens, collectors such as screen laterals and nozzles, resin traps, in-line strainers, water intake screens, well screens, as well as many other applications involving liquid / solids separation.

Conical Baskets and Drums consist of one or more flat wedge wire screen panels rolled to be welded together. It is made of stainless steel 304, 302, 316 and mild steel materials. Conventional construction of Conical Baskets is with an axial slot direction and a Flow outside to inside filtration direction (although Flow from inside to outside is also possible).The minimum internal diameter is 25 mm and in principle all diameters, lengths and widths are possible. The same surface and support wire as for the welded profile wire are used.The Conical Baskets / Drums can be equipped with flanges, reinforcements or special fittings to suit your needs.

Wedge Wire Screens Commodity Description
Thickness of wedge wire
Width of wedge wire
Spacing between two wedge wires / gap
Effective length
Effective diameter
ID of wedge wire pipe / cylinder
OD of wedge wire cylinder type
Material SS-304, etc.

We offer wedge wires in various specifications and forms, most popular sizes as following but not limited to below: We welcome custom orders.

1) 3mm aperture wedge wire screen 2000mm X 2000mm.
2) wedge wire screen .22mm and .35 mm opening,3/8" suppo rt center to center.
3) Profiles Shape wedge wire screen.
Size
1m x 2.31m
2m x 2.31m
Opening: 0.20mm
Profiles Shape: 1.55mm width /2.55mm heigth /13o Angle /2.63mm2 Area of Section
Support Rodes: 2.70mm base /5.70mm heigth /12.45mm2 Area of Section
Separation between Support Rodes, 25mm

4)Wedge wire grating
304 and 316 grade wedgewire for drainage grates.
anti-slip, 5mm wire, 5mm gap with cross members every 22mm.

5) Wedge wire screen (#90 or #93) having slot openings of 0.0525"
Vessel ID is 1850 mm.
Screen OD is one inch less than vessel ID.

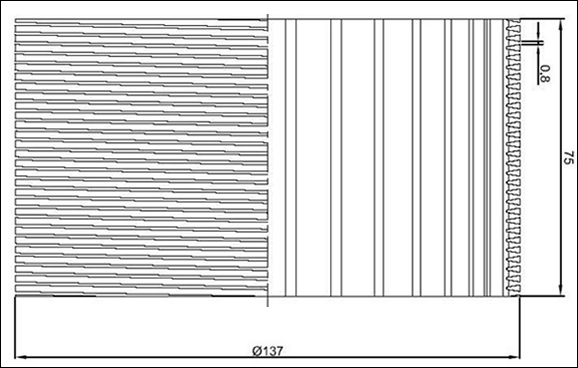

6) Wedge wire screen

Profile :22s
Support:Q35X30
Opening:0.8mm

7) Wedge Wire Screen Internal Diameter : 148mm Total Height : 300 mm. Gap of the wedge wire : 0.20mm.
8) Wedge Wire Coal Centrifuge baskets
9) Wedge wire screen laterals for steel industry for removal of Mill Scale coming up.

  SC-1 SC-2 SC-3 SC-4
Max. Flowrate m3/hr 400 500 555 610
Vessel Dimension Dia. 3.4m X 2.8m HOS Dia. 3.8m X 2.8m HOS Dia. 4.0m X 2.8m HOS Dia. 4.2m X 2.8m HOS
Quantity 3 nos. 3 nos. 3 nos. 3 nos.
Op. Pressure 6.0 Bar
Liquid to Be Handled Cooling Water containing Mill Scale in steel industry.
Fuild Temperature 35 Deg. C to 45 Deg. C
Location/ Type Bottom collector Screen Type for Filter
Design Header Lateral with wedge screen type lateral
Application Filtration of water containing mill scale in steel industry.
MOC Header -MS with epoxy paint & Wedge wire screen lateral -SS 304
Slot opening 150 microns
Approx No. of Laterals on each side 18 20 20 22
Lateral size To be specify by supplier based on flow rate

10) Wedge screen with opening of 2 mm, the module will be 1200x4800 mm.
11) Wedge wire mesh for waste water treatment machine maker company.

12) Wedge Wire Screen for Centrifuge Model HSG 1100/10
Wedge Wire Screen L-4300 Mtr.xW-1300x 1.5Thick 0.5MM ( Required:-503020204,13Deg,0.5MM Aperture )

13) Wedge wire basket to catch stormwater runoff.
The basket dimensions are 900mm diameter and 1900mm deep. There is no bottom. In aluminium or stainless 304.

14) Wedge wire 1200 mm by 1200 mm with 0.5 mm slots.

15) Wedgewire screens horizontal orientation, 5 feet long, 3 feet wide and in two gap sizes .060 .093 gap ( wire width for both is .093 inches).

16) Wedge wire - 48 inch by 50 Inch piece of wedge wire. openings should be .5 mm and wire width sould be 2.5 mm,gap size of wedge slot is 0.25.

17) Rotary and static wedgewire screen

18) Wedge wire to manufacture bespoke screens.

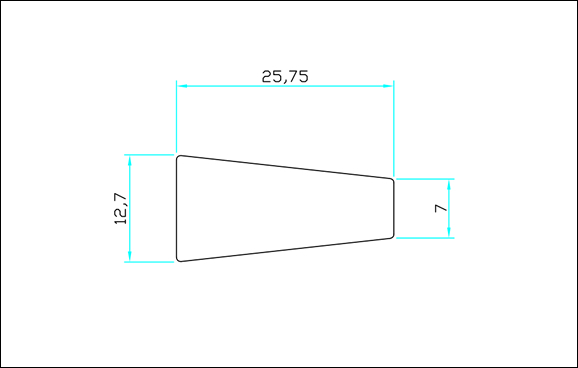

12.7X25.75
The material is normally manganese steel or equivalent.
Manganese steel,we can supply this material in various lengths from 750mm to 1500mm
Grinder Screen Bar

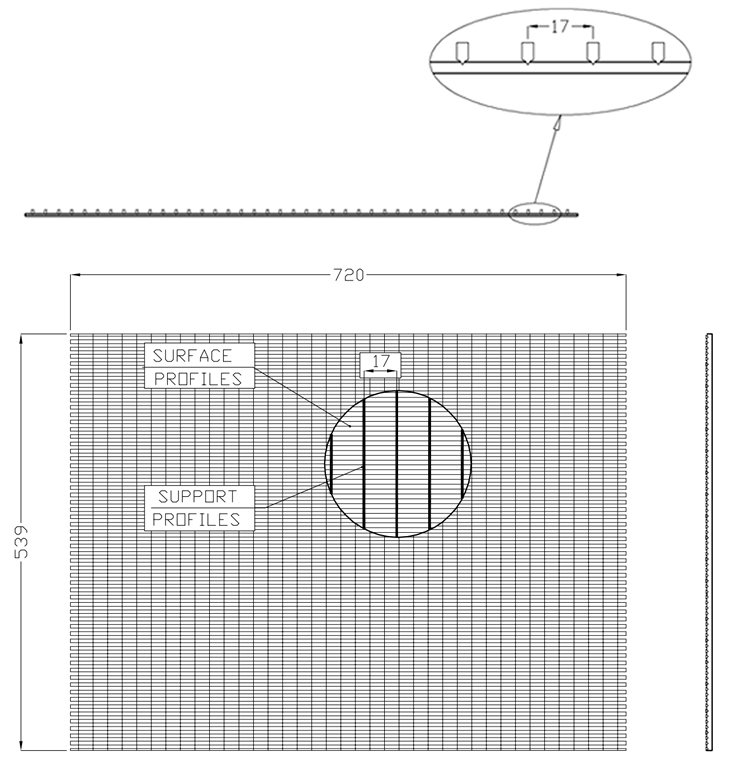

Flat screen for reverse rolled slot tube [FITO] axial support
Filtration degree [Mic.] :200
Material: SST 316
axial direction length: 539
perimeter length [flat pattern]: 720
Surface profiles:12S [triangle base 1mm Height 2mm]
Support profiles: Q35 [base 3mm Height 5mm]
Distance between support profiles:17mm

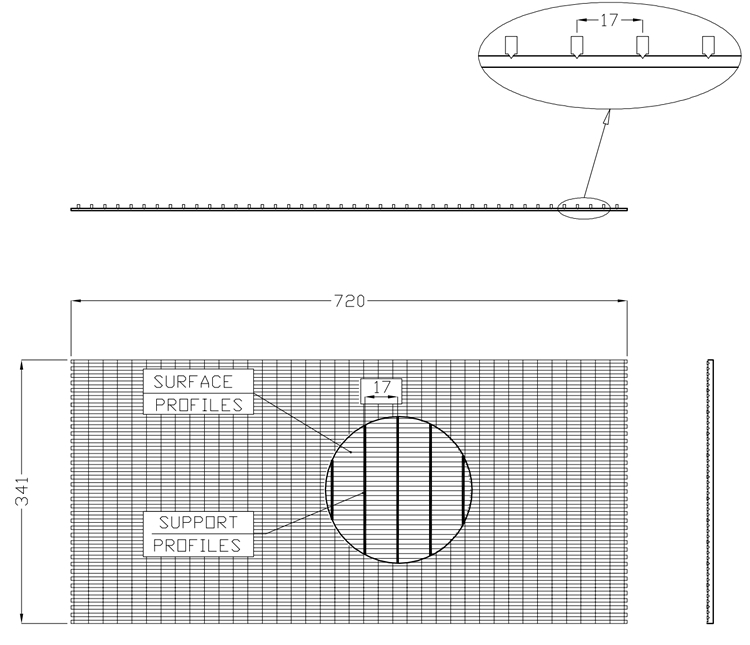

Flat screen for reverse rolled slot tube [FITO] axial support
Filtration degree [Mic.] :300
Material: SST 316
axial direction length: 341
perimeter length [flat pattern]: 720
Surface profiles:12S [triangle base 1mm Height 2mm]
Support profiles: Q35 [base 3mm Height 5mm]
Distance between support profiles: 17 mm

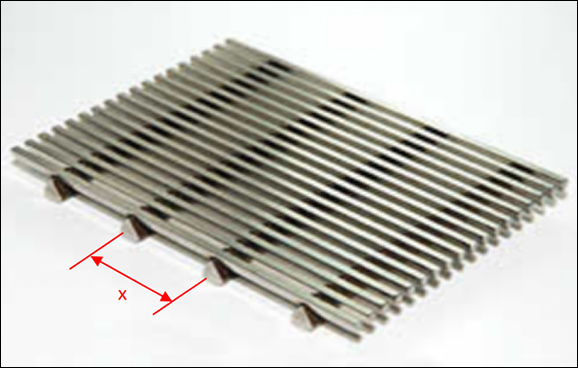

Item Panel Size Quantity Open Area required Slot width Profile Material Support rods profile Support rods distance "x" Support rods type
1 575 x 555 mm 658 23.90% 1.00mm 34SB Grade 304 stainless steel Please inform Please inform rectangular
2 575 x 555 mm 1306 20.30% 0.8mm 34SB Please inform Please inform rectangular
3 575 x 555 mm 248 11.70% 0.4mm 34SB Please inform Please inform rectangular

4

575 x 282,5 mm

76

44.80%

3mm

34SB

Please inform

Please inform

rectangular

Major Prdoucts Lists:

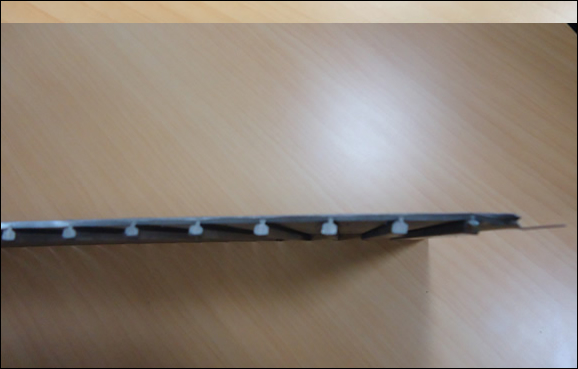

Slot Wedge Wire Screen

Slot wire screen in stainless steel 304

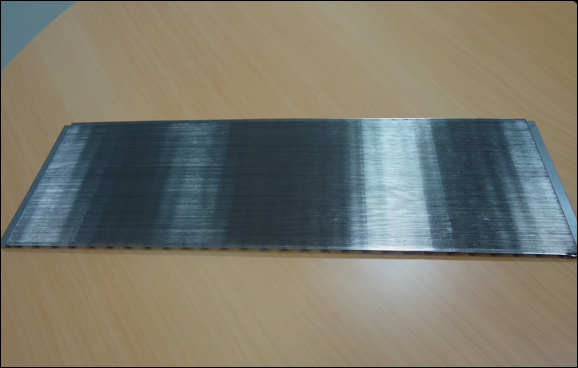

Flat Wedge Wire Plate

Filtration level 0.50mm.

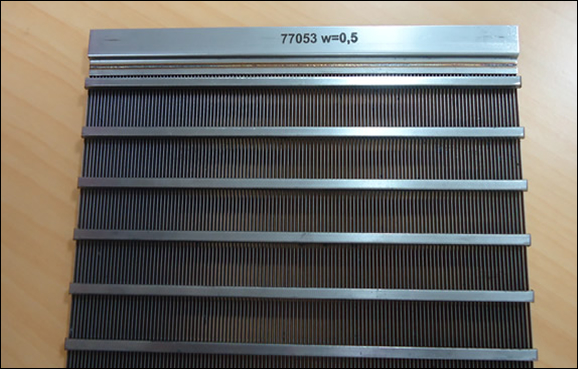

Looped Wedgewire Screen

Stainless Steel Filter Cylinder - Element Wedge Wires

Wedge wire cylinders: Wire Screen details as follows
80 x 450mm
Wedge wire cylinders without end fittings. Flow out to in.
Slots 0.25mm
Open Area 14.2%
Material: Stainless steel 316L
