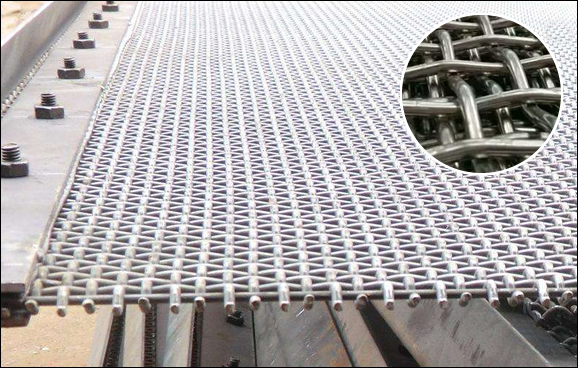

Crimped Wire Mesh Screens, 430, 304, 316, Mn 65 Steel for Mining Vibrating Quarry Crasher

Crimped wire screen is a high tensile wire screen suitable for quarries, sand and gravel pits and all types of ore treatment.

Atlas crimped screen is renowned for extremely high resistance to abrasion. Close checks on raw materials, production processes and constant quality control at all stages of manufacture guarantee a top quality finished product.

Four typical Crimped Mesh Patterns:

Flat Top
The top or working surface of the screen is smooth, all the crimping is on the underside, asssuring a more even weave. Materials are free to move over the screen.

Double Crimp
Evenly crimped in warp and weft, providing a rigid construction. The wires are undercrimped and sprung together thus giving a mesh which will not chatter at the intersections.

Lock Crimp
A variation of the double crimp with an additional crimp to give a firmly locked mesh. Widely used for vibratory screen cloths.

Corrugated Crimp
Extra crimps in war and weft with the wires seated in every third or fifth crimp. Gives a rigid mesh even when the aperture is large in relation to the wire diameter.

We supply:

Crimped Mesh Screen, 2.5mm Wire, Rectangular Opening

Woven of pre-crimp wire:

Opening (mm x mm) Wire Dia (MM) Size (m x m) Type
13 x 6 2.5 1.5 x 1.5 Crimped
7 x 3 2.5 1.5 x 1.5 Crimped
3 x 13 2.5 1.5 x 1.5 Crimped
7 x 3 2.5 1.5 x 1.5 Crimped
2 x 5 2.5 1.5 x 1.5 Crimped

430 Crimped Mesh
SS wire mesh
Crimped wire 007" x hole 240N x roll width 28

JIS G4309 SUS 316 or ASTM AISI 316/L (CRIMPED TYPE)
(DOUBLE / INTERMEDIATE / LOCK CRIMP)
1) 1.6MM( Ø ) X 25.4 X 25.4(#) X 1.22M(W) X 30.0M(L)
JIS G4309 SUS 316/316L S/S (CRIMPED) WIRE MESH
2) 2.0MM( Ø ) X 25.4 X 25.4(#) X 1.22M(W) X 30.0M(L)
3) 3.0MM( Ø ) X 25.4 X 25.4(#) X 1.22M(W) X 30.0M(L)
4) 1.6MM( Ø ) X 50.8 X 50.8(#) X 1.22M(W) X 30.0M(L)
5) 2.0MM( Ø ) X 50.8 X 50.8(#) X 1.22M(W) X 30.0M(L)
6) 3.0MM( Ø ) X 50.8 X 50.8(#) X 1.22M(W) X 30.0M(L)
JIS G4309 SUS 316/316L S/S (CRIMPED) WIRE MESH

Crimped steel wire mesh for stone crushers
Crimped steel wire mesh, red and black color grade 65#, for all sizes starting from 1mm until 60mm.65# steel grade.

black steel mesh   red steel red steel
mesh size 1.5mx2m 1.5mx2m 2mx2.5m
  thickness thickness thickness
  1.5mmx0.75mm 1mmx0.75mm 2mmx1.5mm
  2mmx1.5mm 3mmx2mm 3mmx2mm
  4mmx2.5mm 5mmx3mm 5mmx3mm
  5mmx2.5mm 6mmx3.5mm 6mmx3.5mm
  7mmx3.5mm 12mmx5mm 8mmx4mm
  8mmx3.5mm 14mmx5mm 10mmx4.5mm
  10mmx4mm 16mmx5mm 12mmx5mm
  12mmx4.5mm 18mmx5.5mm 14mmx5mm
  13mmx4.5mm 19mmx6mm 16mmx5mm
  14mmx4.5mm 20mmx6mm 20mmx6mm
  16mmx4.5mm 30mmx7mm 50mmx8mm
  18mmx5mm 32mmx7mm
  20mmx6mm 38mmx8mm
  23mmx6mm 50mmx8mm
  24mmx6mm
  25mmx6mm
  38mmx8mm
  40mmx8mm
  60mmx8mm
  3mmx2mm

High Tensile Woven Carbon Steel Wire for Producing of Vibrating Crimped Wire Mesh Used in Mining & Crusher Plant Screen
Wire Dia:
1mm
1.5mm
2mm
2.5mm
3mm
4mm
5mm
6mm
8mm
10mm

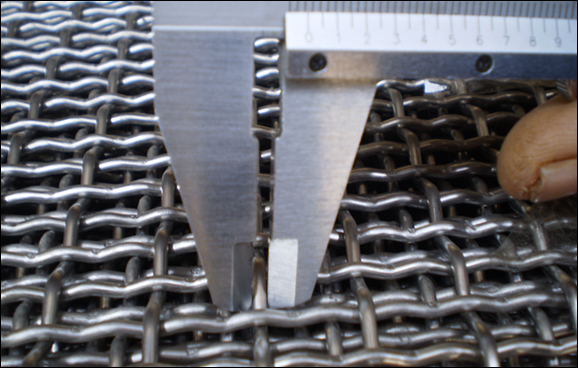

Pre-crimped wire mesh screen - square mesh
cut to 2' x 2' dimensions with .2 inch openings.
Material:stainless steel wire.

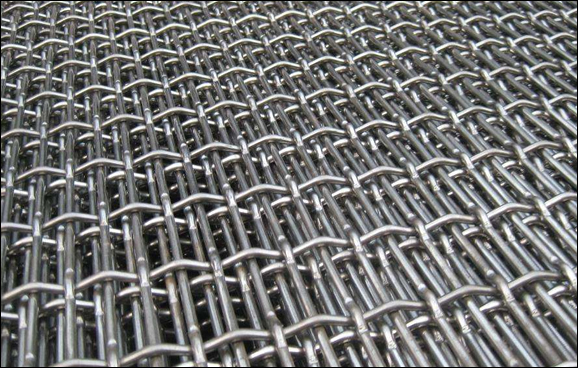

Crimped stainless steel mesh for vibrating screen
Vibrating screen net (wire gauge SWG-14,wire dia-2 mm, mesh -2.5 per inch). The net size 2420 mmx1150 mm.

Crimped mesh for vibrating screen netting
Plain weave mesh with pre crimped wire for heavy industrial virbrating screens


Stainless steel crimped wire mesh screen for quarry industry and filter

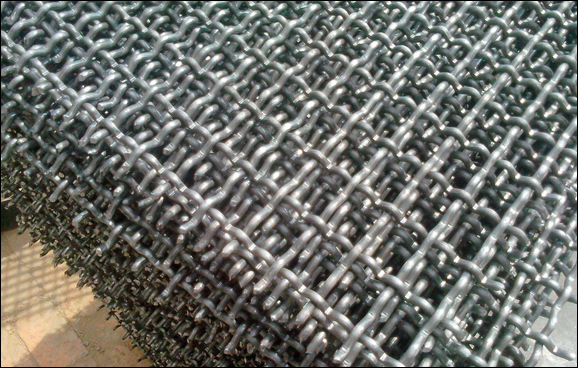

65Mn High Carbon Steel Crimped Mesh Screen For Mining
