Welded Wedge Wire type 304 Stainless Steel Intake Screen for Aquaculture Sea Water, Temporary Raw Water intake and Hydroelectric Power Project.

Atlas supplies quality welded wire screens specially for intake water, called Intake Screen.

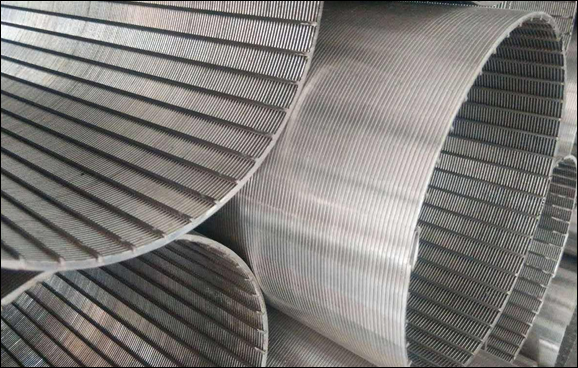

Construction of Wedgewire Intake Screen:
The screen is made of V wire welding to stainless steel rod in a flat panel.

Benefits:
This welded wire screen has a seamless design, a build capability, that can save time and cost;
Cost-efficiencies solution for water treatments;
Can be custom made for all types of industrial facilities requiring intake water including nuclear, hydroelectric, coal, gas, oil and chemical plants, pulp and paper mills and water companies.

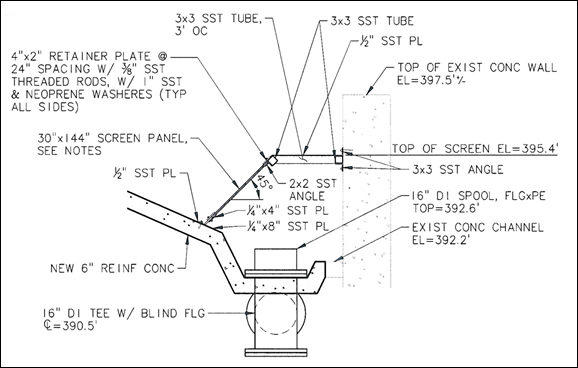

30 Inch by 120 Inch wedge wire type screen for a temporary raw water intake

Design reference:

Screening Materials: Screening materials shall be welded wedge wire Type 304 Stainless Steel, with a slot size no greater than 0.069 inches. The open area for this slot opening minimum 40%. Slot size controlled and continuously monitored during manufacture. The wire orientation is horizontal. The slot size within +0.002" with a standard deviation no greater than 0.002" throughout the assembly.

Temporary fish screen notes:
1. Temporary screen minimum dimensions of 30"xl44".
2. The flat screen panel assembly shall be designed to withstand a differential hydrostatic load of 4.5 psi (io feet of water) with a maximum deflection of 0.25". design stress used for determining strength of the assembly shall be no more than 80% of the published yield strength of the material used.
3. Panel screens shall consist of welded frames and supports fabricated from type 304 stainless steel. The screen surface shall be of smooth wire shape with inwardly enlarging openings to minimize the likelihood of debris entrapment.
4. Screening materials : welded wedge wire type 304 stainless steel, with a slot size shall no greater than 0.069 inches. the open area for this slot opening minimum 40%.
5. fully enclose screen structure with sheet metal panels. gaps in screen structure shall not exceed 0.069 inches.
6. all connections to concrete shall be made with stainless steel drop-in anchors and 2" stainless steel and neoprene washers @ 24" oc maximum.

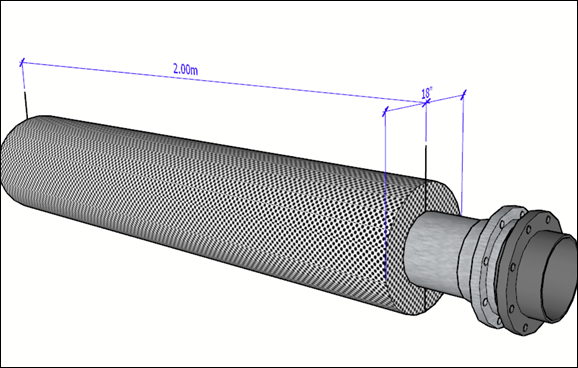

Intake Screen for Aquaculture Sea Water
Wedge wire intake screen for Sea Water pump station for research aquaculture.

Wedge Wire Intake Screen for Hydroelectric Power Project
1.25 m3/sec. the maximum width is 0.5 mm for filter any particles above 0.5 mm.
stainless steel 304 flat screen.

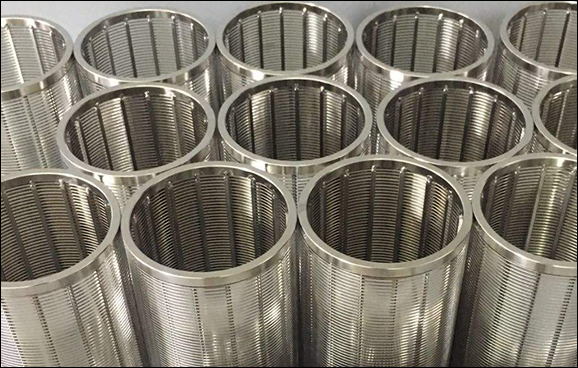

River Water Intake screen

Ppassive water intake screen project for the major waste water treatment plant facilities. Circular screen in shape, of pipe tee fashion, made of 304L stainless steel.

Stainless steel wire screen to clean debris from circ water intake screens
Cloth wire type 304 ss 5/8" square opening .080" wire dia.
36" wide x 100' ft long
Screen wire type 304 stainless steel
3/8 inch square opening number 14 ( 0.080 )
Wire diameter 72 inch x 100 foot roll
Option (alternate parameters)
Must be no larger than 5/8" holes
Gauge 12-14 may be acceptable
NO LESS than 36" wide and 12 ft.
Optional sheets but must meet parameters.
