Wedgewire Trommel Rotary Filter Screen

We supply wedge wire trommel screen, shipping to New Zealand and other countries.

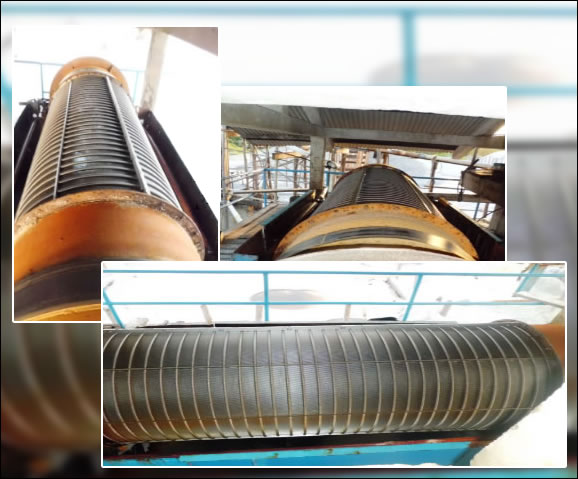

Trommel screen is a type of wedge wire rotary screens as sifting element used in Rotary Trommel Drums, for screening and sizing in mining, municipal solid waste and resource recovery. Trommel screens are often used for the removal of stones, soil, clay, and other large materials from mined ore and other material stockpiles.

Structure of Trommel Screen:
Trommel screen is cylindrical or tube-shaped screen mounted on an axle, which rotates to separate fine particles from larger pieces of debris.

Trommel screen can be made of various metals, mainly stainless steel.

Stainless steel wedge wire trommel screens offer several benefits:
Precise material separation, longer life expectancy, superior strength, and resistance to abrasion and corrosion.

Specification of Trommel Screen:
Trommel screen specifications vary depending on the type and size of the material being screened. Generally speaking, trommel screens come in different lengths and diameters, up to 10 feet in diameter and up to 70 feet in length. The trommel also includes adjustable baffles, which can be adjusted to separate different-sized particles.

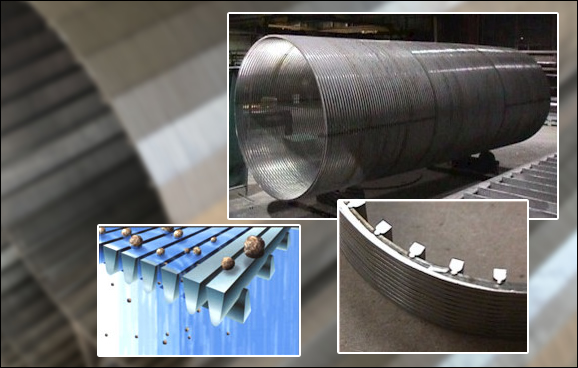

Trommel Screens in 304 Stainless Steel - of Wedge wire of internal axial wire
Wedgewire trommel screen 300mm ID and 400 length
Opening: 1mm aperture, internal axially wire structure.
Flow from inside to outside.
Material 304 Stainless steel

Wedgewire trommel screen 500mm ID and 600 length
Opening: 1mm aperture, internal axially wire structure.
Flow from inside to outside.
Material 304 Stainless steel

Wedgewire trommel screen 600mm ID and 900 length
Opening: 1mm aperture, internal axially wire structure.
Flow from inside to outside.
Material 304 Stainless steel

Wedgewire trommel screen 900mm ID and 1200 length
Opening: 1mm aperture, internal axially wire structure.
Flow from inside to outside.
Material 304 Stainless steel

The size of the profile wire:
#3/32 ISO wire or #93 profile wire on SR250 support rods.

Rotary Trommel Screen in 430 Stainless Steel

Structure:
Round Wedge Wire
Wedge Wire in 430 Stainless Steel fitted with Flange Ring and Flat Bar

How does trommel screen work:
When the drum turns, the material tumbles onto other material at the bottom of the drum. The materials break into smaller size pieces, or filter through the mesh holes in the screen, while the larger size material continues to be further sorted and processed.

430 Rotary Trommel Screen Specification:
2250mm length x 1000mm inside diameter
0.71mm ( Tyler mesh 24) slot aperture
Profile 32F or 0.6mm ( mesh 30)
Wedge wire in grade 430 stainless steel

Fitted with 40x8 drilled flange ring in grade 304 stainless steel at each end.

All flat bars and strengthening bars are in 304 grade stainless steel.

430 Stainless Steel Rotary Trommel Screen Filter
