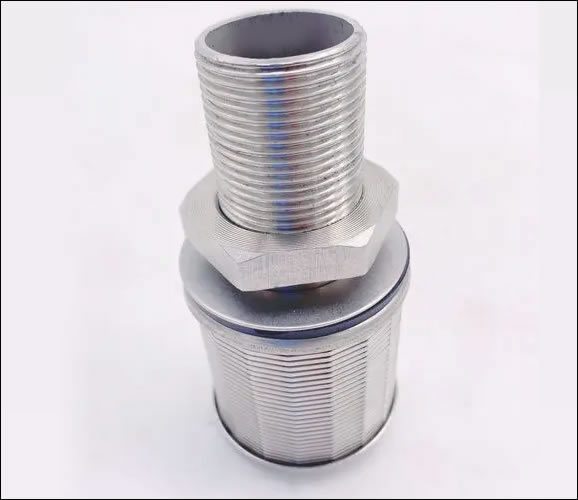

Stainless Steel Wedge Wire Screen Filter Nozzle

We supply wedge wire screen nozzles in both ss 304 and 316L.

Wedge Wire Screen ( Screen Nozzle), 304 Stainless Steel
Size OD: 114.3X158 L X 191 mml
Wedge wire: 1.5 W X 2.5 H
Slot:0.2MM, open area of 11.76%
Connection: 3" BSP
Material: SS 304
Flow: 8M3/H TO 15 M3/H MAX.
Pressure: 4BAR
Fabricated nozzle:
Stainless 304 gac nozzle is pre-coated with teflon at manufacturer work.
The teflon coating is to ensure not contact between the metallic body of the nozzle and the distribution pipe to avoid galvanic corrosion.

316 L Stainless Steel Wedge Wire Screen Filter Nozzle
In two nozzle length.
Sizes can be customized.
SS 316L wedge wire screen filter nozzle
Slot opening: 0.007", body 2" diameter, 2" height, pipe nipple 3/4" sch 40
Total length of nozzle: 16"

SS 316L wedge wire screen filter nozzle
Slot opening:0.007", body 2" diameter,2" height, pipe nipple 3/4"sch 40
Total length of nozzle: 7"
