SUS 304, 316 and Super Duplex Stainless Steel Wedge Wire Filter Micron Screen

Atlas manufactures V-Wire design continuous slot wedge wire screen made of choice stainless steel 304 and 316 material, super duplex ss, also 321 or monel ( at request). Stainless steel wedge wire screen offers better strength and corrosion resistance over carbon steel galvanized wedge screen products.

Our stainless steel wedge wire 0.25 mm (250 micron) and 0.50 mm (500 micron) is mostly used for filter uses.

We supply following SS Wedge Wire Products ( Screens and Panel Filters):

1) Wedge Wire sheets of 1mm Aperture Wedge Wire ex T316 S/S. 1850 mm x 1350 mm wide. the 1 mm aperture to run along the 1350 mm width.
2) Wedge wire size 4x10 open area 0.7mm stainless steel.
3) Wedge wire screen 12 inches wide by 24 inches long.
4) Stainless Steel 316 Wedge Wire Wrap Welded Screen Element


5) wedge wire screen in 304 stainless steel. Slot opening .030 1.5 inch supports every 3 inches for brewery mash tun screens, screens 60" x 60''. prefer heavy wire.
6) 300 or 200 micron stainless steel wedge wire screen
7) Stainless steel wedge wire screen. 0.250 micron, 400mm by 800mm ( or closest standard size). Titlted at an angle for filter use.
8) Wedge wire screen for dewatering application.
Micron: 200
Material: Stainless Steel 304
Dimension: 400 (L) x 40 (W) cm


9) Wedge wire type lateral. Slot open area = 0.25 mm, Lowest rate for 3" X 40" long & 3" X 47" long SS 316.

10) Wedge wire Screen, 15" ID x 45" Long
Reverse axial style for inside to out flow
#60 wrap wire on #90 support rod
.023" Slot size (30 mesh)
304 Stainless Steel construction.

11) Parabolic wedge-wire screens with apertures of 0.3mm, 3mm & 5mm.
Material of Construction: SS 304.
Application : Screening of wastewater.
Flow rate for 0.3mm screen: 200 cubic metres per hour.
Flow rate for 3mm screen: 400 cubic metres per hour.
Flow rate for 5mm screen: 200 cubic metres per hour.

12) Wedge wire screen to Monel (UNS N04400) or Super Duplex Stainless Steel (UNS S32750) material for special seawater strainer.

13) SS 316 Wedge wire screen
Wedge wire screen 47 Profile x 590 micron aperture 60mmOD to suit DN50ipe x length 500mm
Wedge wire screen 47 Profile x 590 micron aperture 90mmOD to suit DN50ipe x length 430mm

14) Slot Wedge Wire Type SS316
Slot width 3mm
Max. water difference across screen area 1,5 m Water
Material AISI 316TI / AISI 316
Screen field area 38 m2 / screen (B=3,8m x H=10m)
Deliver / Mounting dimensions:
Width (3,8m) = Channel width
Height 1-3m = each field
Frame construction by customer

15) V formed stainless steel wedge wires

  A B C
Wire Width: 0.063" 0.093" 0.125"
Wire Height: 0.11" 0.15" 0.20"
Relief Angle: 13 13 13

Material: AISI 304 - AISI 316 or AISI 313L

16) Stainless Steel Wedge Wire Panels form 2.4 metres long x 1 metre wide.
top wires to be 2mm wide x 3mm deep on support bars of 3mm wide x 5mm deep.
The support bars @ 50mm centres with the top wires being at 5mm centres.


Type 304 Stainless Steel Wedge Wire Screen

Sr. No. WEDGE WIRE SCREEN Description
1. Size: Dia. 220 x 330 LG.
Effective Size Of: 0.9     1.4 mm Media
2. Size: Dia. 220 x 330 LG.
Effective Size Of: 0.8     0.9 mm Media
3. Size: Dia. 220 x 330 LG.
Effective Size Of: 0.3     1.2 mm Media
4 Common Specification :
MOC: SS 304
Flow Direction:OUT to IN
Differential Pr. To: 6Kg/cm2
Withstand

Stainless Steel Wedge Wire Screen is supplied with various surface profile and support profile considering design and maximum free flow area available with respect minimum withstand differential pressure. In cylinder and sheets for rotary drums and sieves.

Stainless Steel Wedge Wire as Filter Insert/Screen

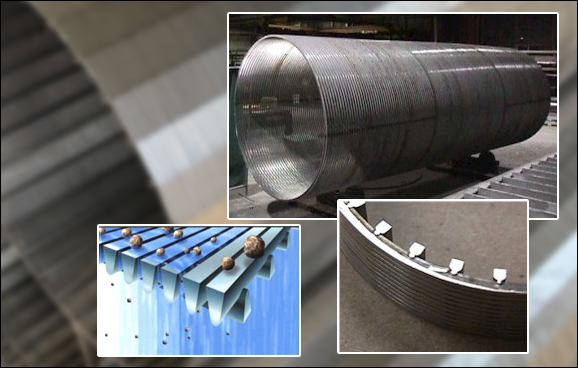

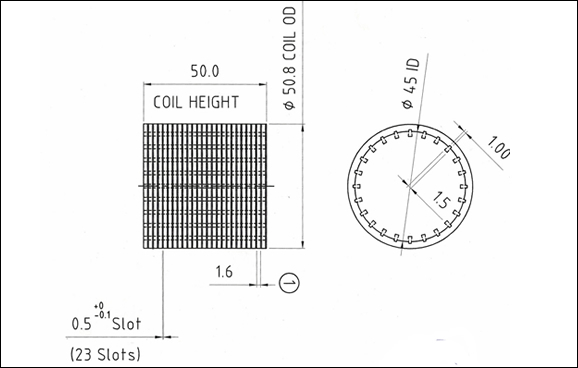

Stainless Steel Wedge Wire Screen in Cylinder Shape

Wedge wire screen (stainless steel) in cycliner shape diameter of 600mm, for rotary drum filter, the screen to be perfect circle.

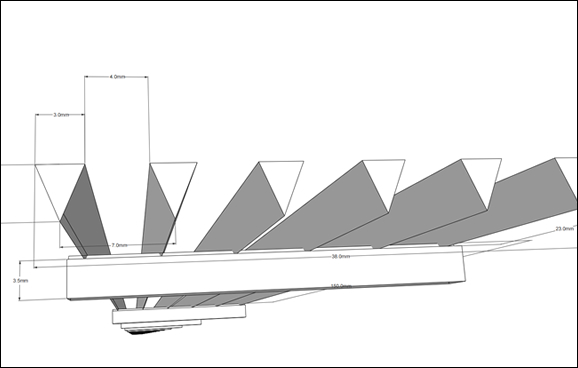

Construction of SS Wedge Wire Screen:
Our stainless steel wedge wire well screens are manufactured using unique computer controlled machinery in which a continuous length of stainless profile wire of a triangular section is fusion welded into support rods. This 'V' shaped profile wire is wound around the support rods over the full length of the screen thus creating a continuous slot opening.

Slot (mm)
Standards; 0.25-0.50-0.75-1.00-1.50-2.00-3.00

Customized Slots are considered.

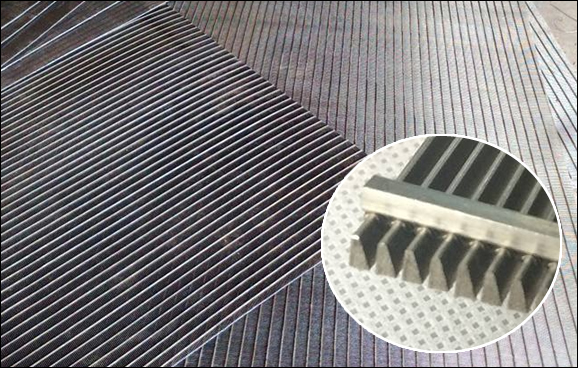

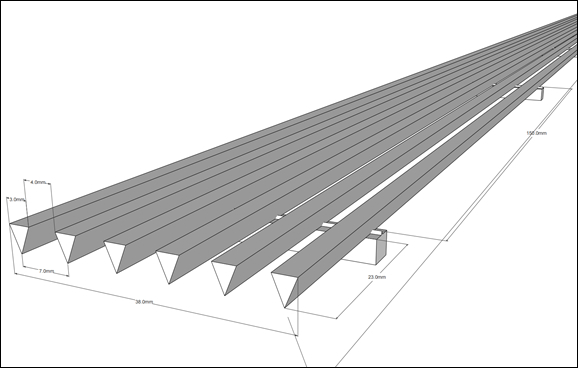

Stainless steel wedge wire screen filter in flat panels


Stainless steel 316 flat welded wedge wire screen/sieve wire
