Welded Wedge Wire Screen in Replacement of Woven Wire Mesh Screen for solid / liquid separation

Welded wedge wire screen is manufactured by flat welded screen in panel, curved or cylinder type.
Welded wedge wire screen panels offer a perfectly flat and smooth surface with precision fine openings.

Woven wire mesh screen or Welded wedgewire screen?
Welded Wedge Wire Screens are made from V shaped profile wire, with an unique welding process, offering great strength, precision, long service life and a wide range of applications in the field of process and engineering such as sugar juice filtration, waste water treatment, crude oil and natural gas production and vessel internals solving problems of solid / liquid and solid / gas separation, filtration of oils, greases, paints, food products, water, fuels, liquid cooling agents, chemicals etc.

Woven wire mesh cloth as filter media is woven of wire, offering less strength and firmness of structure. In many fields Welded v wire structure wedge wire can replace conventional media like wire mesh cloth, perforated plate and other metal sifting materials as components for rotary screen, well screen, quarry screen, and other filter elements which require both precison and strength of structure at same time.

Major Application:
Separating;
Sizing;
Straining;
De-watering;
Filtering;
Drying;
Water intake;
Media retention.

Flat welded wedge wire screens
Flat wedge wire screen
Material: AISI304
Size: 290x1240 mm
Wire:1,52x2,54 mm
Support rod: 3x5 mm
Pitch:22mm
Slot width:0,5 mm 1mm
Slots parallel to 1240 mm

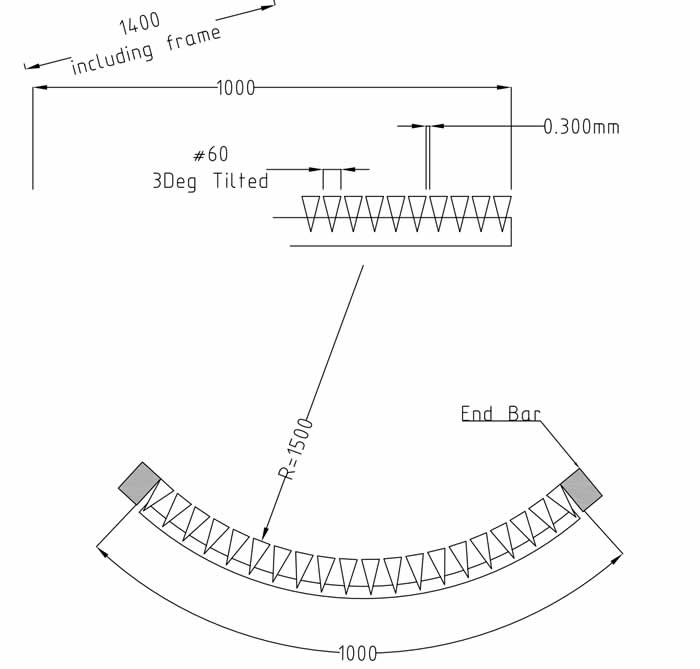

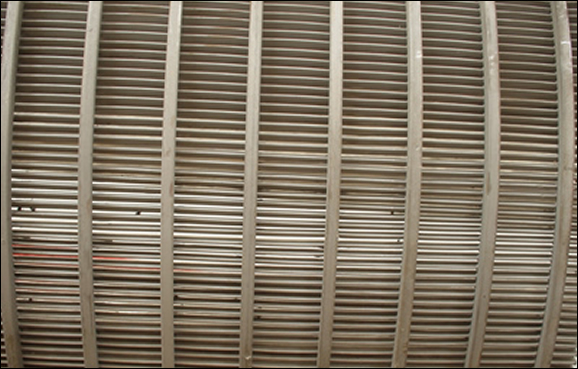

Curved welded wedge wire screen

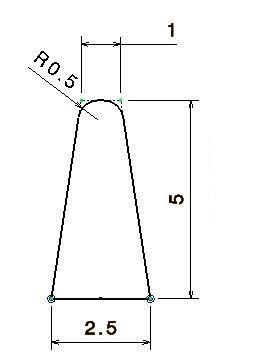

Profile:


Welded Wedge wire curved screen Square cut & deburred
Width 1400mm +/-1.0mm.
Length 1000mm +/-1.0mm.
Profile #60 Wire Tilt 3 Deg.
SR50 Support Rod.
Slot 0.30mm, Fo = 16.5%
SS 316 Material with frame and end bars.

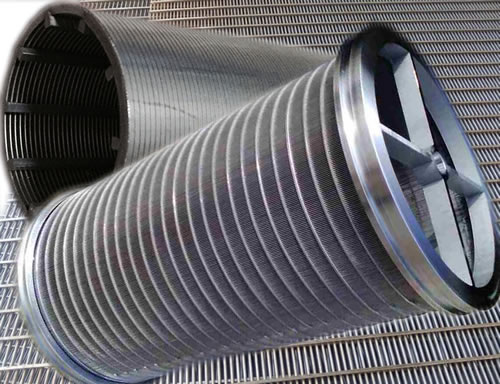

Stainless Steel Welded V Wire Wedge Wire Screen Filter Pipe

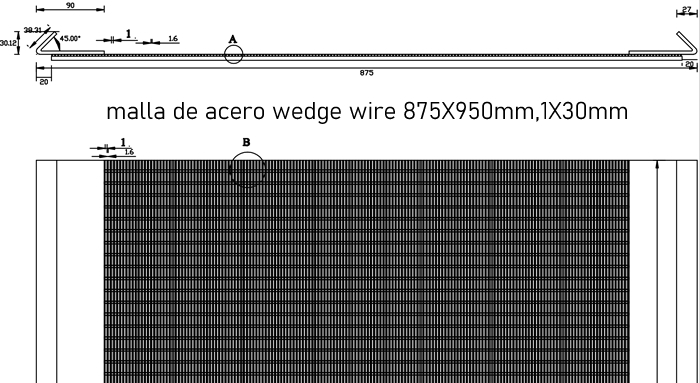

Welded wedge wire screens-malla de acero wedge wire 875X950mm,1X30mm

Diagrams for reference

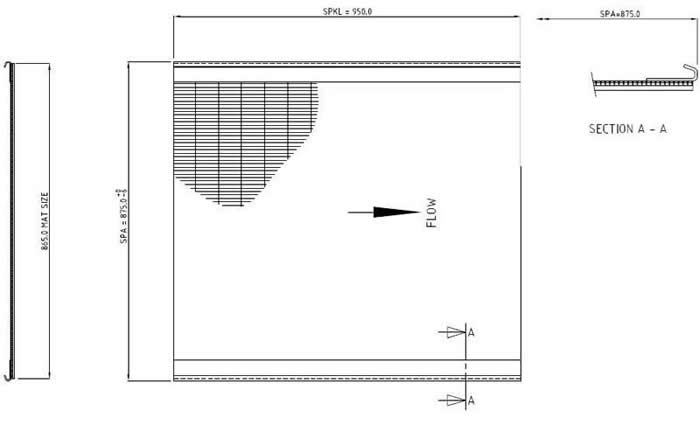

Specifcations as following:
Material: AISI 304
Wedge Wire (mm):
Width:1.60
Height:2.60
Support (mm):
Width:3.10
Height:5.40
Opeing:1.0mm
Pitch:30mm
Size (mm):875*950

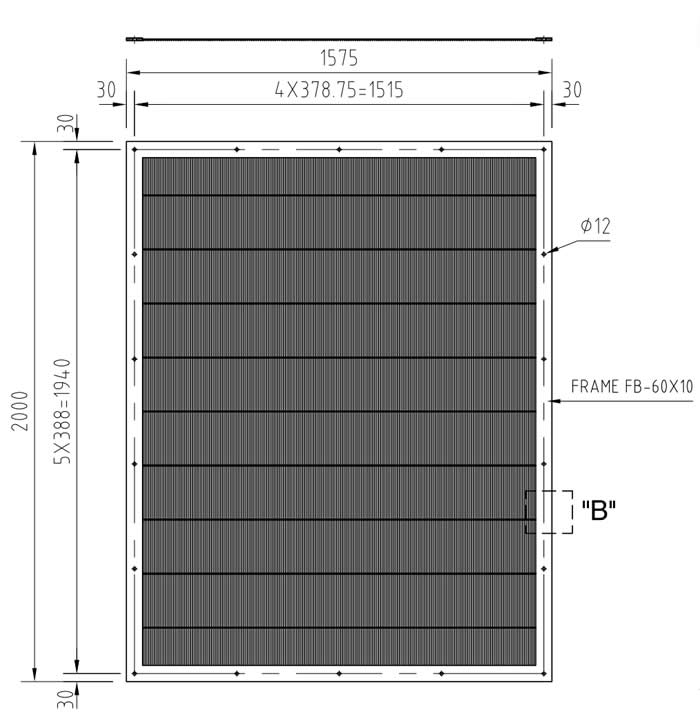

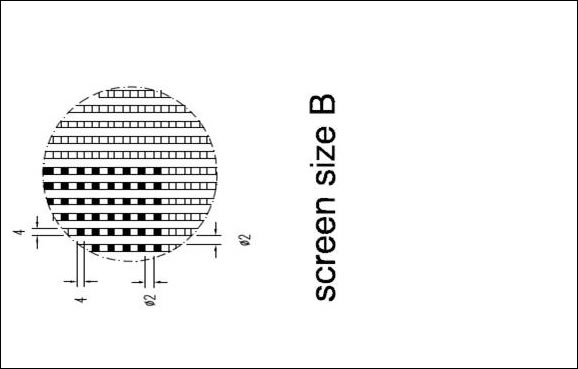

Wedge Wire Screen 316 L & Frame


Screen type: Wedge wire

Material:SS316
Wedge wire size:2mm
Slot:4mm
Support rods:3mm
Support rod distance:20mm
Size Now 2000 * 1575

Welded wedge wire screen sheets with the following dimensions, the material stainless steel 316L.


length:1100mm
width:750mm
profile type: V type 5mm height - as shown in attached file.
gap between profiles: 1mm

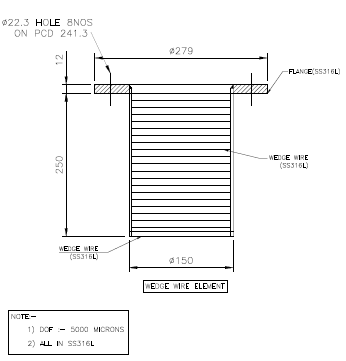

Welded wedge wire screen with flat bottom / 1000 /5000 micron (2.66 W x 4.32 D) out to in 3 kg/cm2
SS 316L
dia 150 nb x 250 L

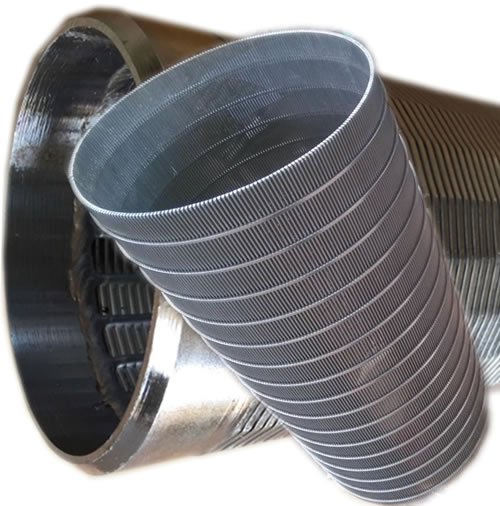

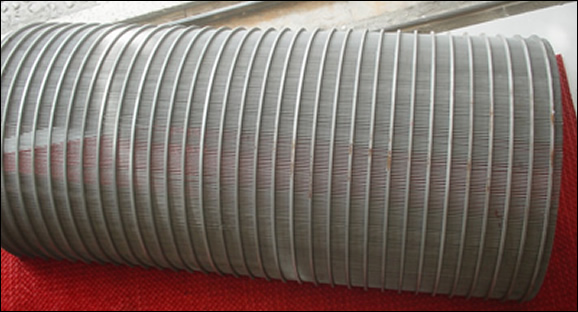

Welded Wedge Wire Screen SS 304, Cylindrical Shape
Type: Cylindrical wedge wire screen.
Construction type: Welded
Area required: 2 meter Squire approx
Dimension: 550 +/-1 mm dia. ID x 1250 +/-5mm height
Flow direction: In to out
Aperture opening 30 +/-5 microns
MOC SS 304

Cylindrical welded ss wedge wire screen

Stainless Steel welded Wedge Filter Wire Screen Panel with uniform gap
Welded 304 wedge wire screens
wedge wire screen 1mm opening with the top side of no longer than 3mm.
25% opening on the screen cut to the size of 1025mm X 1025mm square.

SS316 Stainless Wedge wire screen (welded ) outside to inside flow filter

Lenght: 1000mm
Diameter: 110mm
Micron range: 130 mikron
Up side and bottom side open
Filtration psition; from outside to inside
Material: ss316 stainless steel
