Slotted Bridge Water Well Screen Pipes - Perforated Tubes Stainless Steel and Galvanized Carbon Steel (Optional)

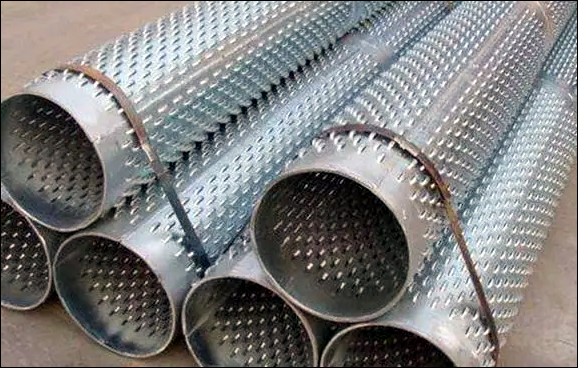

Stainless Steel Slotted Bridge Water Well Screen Pipes
Perforated stainless steel tubes.
Tube dimensions: Diameter 219mm, length 1055mm, wall thickness 5mm.
Material quality AISI 304.
For making draining wells, perforated tube with bridge slots screen.
Attached technical drawing.

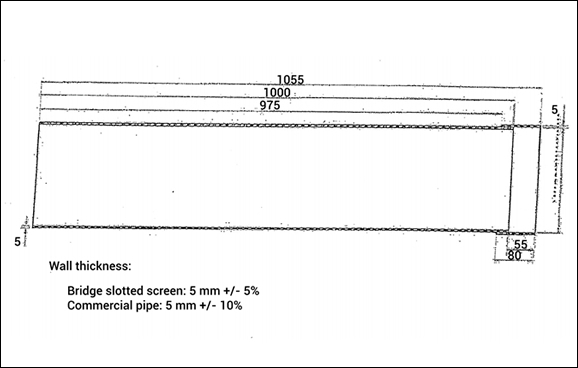

Bridge slot screen pipe and wall sizes
Wall thickness:
Bridge slotted screen: 5mm+/-5%
Commercial pipe: 5mm+/-10%

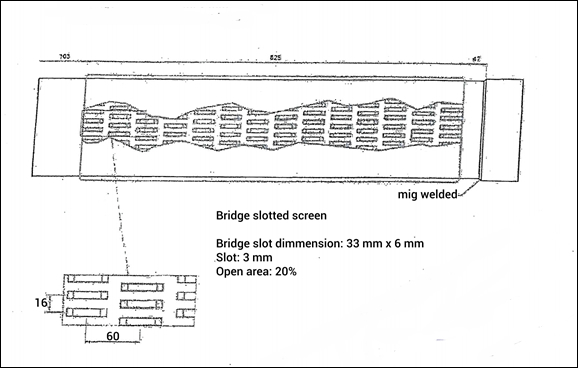

Slot size and design

Bridge slot dimmension: 33mmx6mm
Slot: 3mm
Openarea: 20%
Migwelded

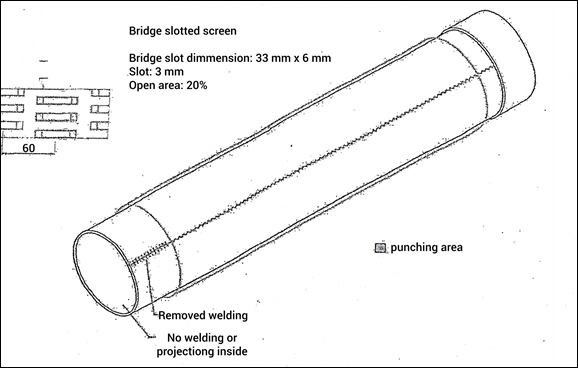

Bridge slotted screen perforated tube
Pipe tube, removed welding, Nowelding or projectiong inside, open area 20%

6 5/8" Slotted Bridge Water Well Screen Pipes-stainless steel -304 L

OD 6. 5/8" -168.0 mm
WT-4 mm
Length - 5.80 meter
Material: ST.ST. 304 or 304 L
Surface treatment galvanized (OPTION)
End connection STC couplings (OPTION)
Perforation not less than 15% of the pipe surface area.
No SPIRAL weld accepted, longitudinal weld accepted.

Carbon Steel Perforated Bridge Water Well Screen
12"Carbon Steel Perforated Bridge Water Well Screen
Surface treatment: Hot dip zinc galvanized
18" Carbon Steel Perforated Bridge Water Well Screen
Surface treatment: Hot dip zinc galvanized
