316 and Duplex Wedge Wire Screen Cylinders

316L Wedge Wire Screen Cylinders and Super Duplex Screen Cylinders

We produce wedgewire screen cylinders in customized specifications for customers around the world.

Wedge Wire Screen Cylinders in 316L stainless steel
57.2 mm o.d. x 708mm long.
Construction:- 12 SL/Q25 x1.5 opening.
Wedge wire screen cylinders 113mm OD X 1.5M

Wedge Wire Screen Cylinder ( Vertical Support & Horizontal Slot )

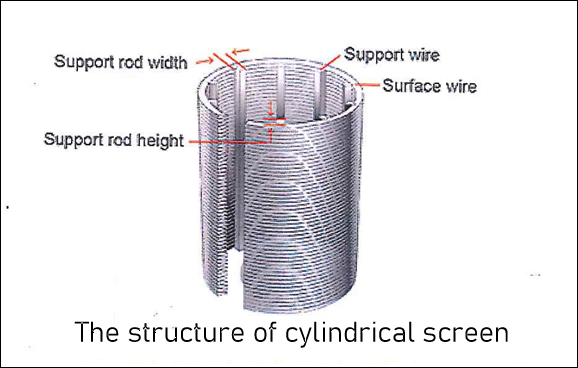

The structure of cylindrical screen

Wedge wire screen filter for the application of Self cleaning filter
Material: SS 316
Micron: 50 & 100
Size : 340 ID & 1000 mm length
Flow Direction : IN to Out
Construction: Vertical Support & Horizontal Slot Type.

2507 Wedge Wire Screen Super Duplex Cylinders
Super Duplex Cylinders ( UNS S32750 ) 25.6 Inch Diameter ( 650mm ) x 37.5 Inch Long ( 950mm ) ( support Bar Direction ) Smooth Face Outside
0.024 Inch Slot ( 0.6mm ), 60/93H support Rods

Flat Panel ex Super Duplex ( UNS S32750 ) 80 Inch Long ( 2032mm ) x 40 Inch wide ( 1016mm ) ( Support Bar Direction )
0.012 Inch Slot ( 0.3mm ), 60/93H support Rods
Flat Panel ex Super Duplex ( UNS S32750 ) 80 Inch Long ( 2032mm ) x 40 Inch wide ( 1016mm )( Support Bar Direction )
0.02 Inch Slot ( 0.5mm ), 60/93H support Rods

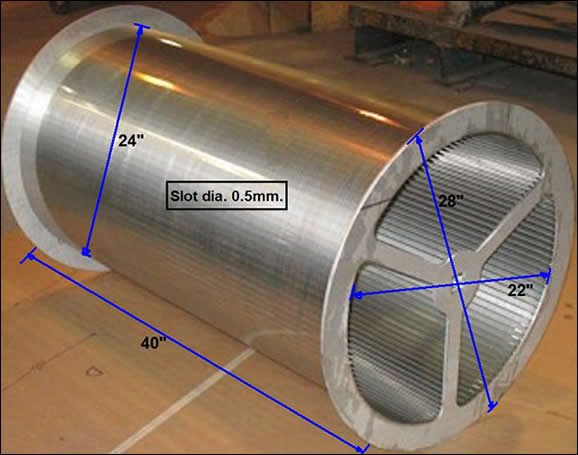

Stainless steel screen cylinder slot diameter 0.5mm, as per dimension attached:
Wedge wire cylindrical screen filter in stainless steel 316L

36” X 96” Cylinder Wedge Wire Screen for Coastal Manufacturing

Flat side of wire facing inward
3/32” wire with .060” gap
Construction: Flat bar ends (or standard construction with solid plate with drive shaft end).
Material: 316 S/S

Continuous Slot Wedge Wire Cylindrical Screen ( 316 SS) - used as Drum Screen Filter Element
Continuous slot wedgewire cylindrical screen ss316 for water treatment
Diameter 316 SS wedge wire disc ¼" openings on top of a cylinder
Cylindrical wedge wire screen built in 316L with approx. 500 mm diameter and 700 for manufacturing drum screen filter
