A wide range of wire mesh screens can be used for sizing, classification and de-watering in mining and other industries. Fitted on vibratory machine, the wire mining screen is used for coal & iron ore processing.

We offer mining screen in following forms and sizes:
GALVANIZED WIRE MESH
FLAT WEDGE SCREEN PANEL
WEDGE WIRE SCREEN LATERAL
SIEVE BAND
CENTRIFUGE BASKET

Mining Mesh
Black Wire Mining Mesh 2400 x 1500mm, Aperture 100 x 100mm x 4mm Thick, Smooth Black Wire, Gusset Weld, Flush Cut
Galvanised Mining Weld Mesh, 2400mm x 3000mm, Aperture 100mm x 100mm,5.6mm Wire Diameter, Smooth Wire, Flush Cut.

GI WIRE MESH:27SWG 0.8534MM SIZE OF OPEN for Industrial & Mining Spares
Technical Specifications:
Size of the opening:0.8534mm,
Wire Dia: 27 SWG (0.4167mm) Width:1.2Mtrs.
Weight: 1.8Kgs per Sq. Mtr. +/-5%.
Length: 30+/-1.0 meters in each bundle
Mesh No. 20 (No. of openings per linear inch).

SS304 Slotted Mining Screen for Petro Chemical
Screen: wet screen, rod mills,matt,wd 1000 x lg 2000 x thk 1.5mm,ss 304,
Panel thk: 1.5mm, open area: more than 50%, opening:3mm;
Panel wet screen,1030mm,2000mm,1.5mm,ss 304,hole size:3x 18; pitch:22x 12mm

Flat Screen for food and mining
Material: SS 304
Slot size: 3mm
Profile Wire: 3x 5 mm Long:550mm
Support Wire: 3x 5 mm Rectangular section, Long 900 mm
Size of screen: 550mm x 900 mm

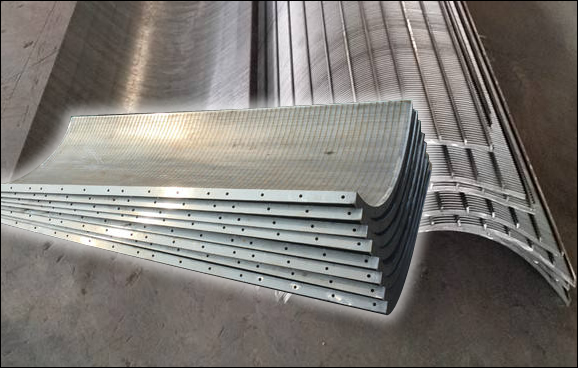

Sieve Bend Mining Screen

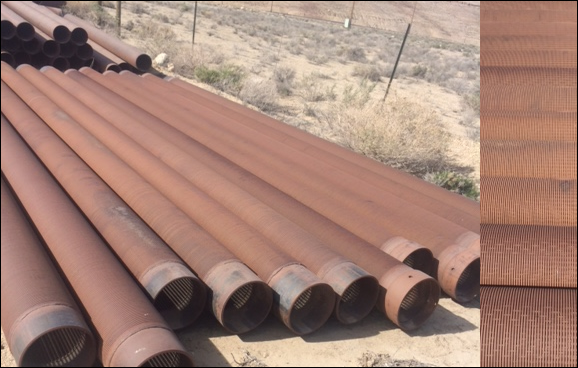

Wedge wire screen pipes for mining

12 in wedge wire screen, 20 ft joints for mining company

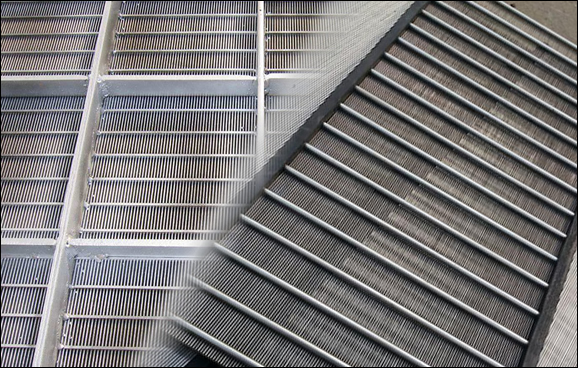

Flat Mining Mesh Screen Panels

Mesh sieve for Mining Machinery

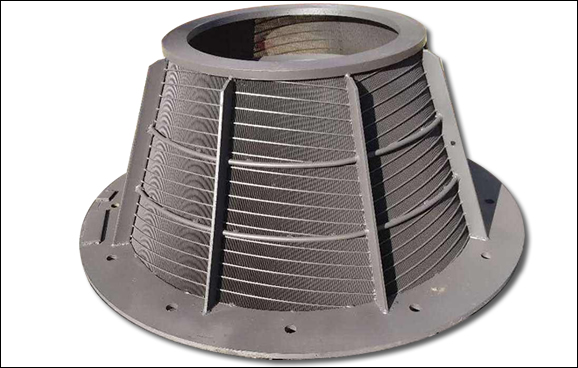

Centrifuge baskets for coal mines
