Stainless Steel Well Screen and LCG Well Screen Pipes

Atlas supplies wedge wire well screens in LCG (Low Carbon Galvanized) material, SS204 and SS 304 material. Slot sizes: 0.2mm, 0.25mm 0.5mm, 0.75mm, 1mm and custom sizes.

Our wedge wire well screens are exported to supplier of drinking water in Argentina, Vietnam drilling companies, Pakistan, Bangladesh and many other countries.

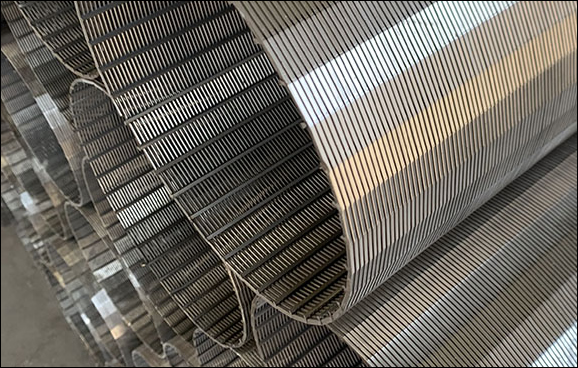

Well Screen Pipe in LCG ( Low Carbon Galvanized ) Steel
Low carbon steel galvanized wedge wire well screen pipe filter
Specification: 8.5/8" continuous slot, wedge wire well screen in LCG (Low Carbon Galvanised) material rod base all length 5.80 m, collapsible resistance 50 bar beveled plain end.

Filteration:
Slot- 1 mm
Slot- 0.75 mm
Slot- 0. 50 mm

Above wedgewire well screen pipes can also be made SS wedge wire well screen pipe.

Wedge Wire Screen Pipe in LCG and SS204 - Strainer Filter in Pipe Form
Screen Size, Apperture/Opening as following:
Well Screen Pipe Type 1:

No. Description
  Stainer Filter In Pipe Form as detail:
1.
2.
3.
4.
5.
6.
7.
8.
9.
2" LCG SLOT 40 ( 1mm )
3" LCG SLOT 40 ( 1mm )
4" LCG SLOT 40 ( 1mm )
6" LCG SLOT 40 ( 1mm )
8" LCG SLOT 40 ( 1mm )
2" SS204 SLOT 40 ( 1mm )
3" SS204 SLOT 40 ( 1mm )
4" SS204 SLOT 40 ( 1mm )
6" SS204 SLOT 40 ( 1mm )

Well Screen Pipe Type 2:

No. Description
  Stainer Filter In Pipe Form as detail:
1.
2.
3.
4.
5.
6.
7.
6" LCG SLOT 40 ( 1mm )
8" LCG SLOT 40 ( 1mm )
2" SS204 SLOT 10 ( 0.25mm )
3" SS204 SLOT 40 ( 1mm )
4" SS204 SLOT 40 ( 1mm )
6" SS204 SLOT 40 ( 1mm )
8" SS204 SLOT 40 ( 1mm )

Wedge Wire Water Well Screens SS 304 Standerd wrap
Bore-well screen, sizes as follow for Pakistan
Wrap: Standerd wrap
Well screen as follow
Outer dia 2 inch (45-50mm)
Length 1 mtr
Slot opening 0.2mm
Material SS 304
Both ends open no fitting styling

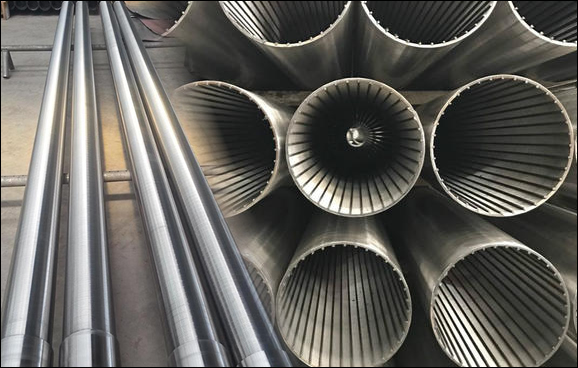

Stainless Steel Water Well Screen
Stainless steel well screen tubes for water well drilling
Water well stainless steel screen, with detail specification of 2 types of screen ( heavy construction and light construction), for Bangladesh drilling company in water well drilling.
