Rotary Drum Screen

Wedge Wire Rotary Screen - SS 304 Rotary Drum Screen Cylinder - for Rotary Screeners, Sieves, Sifters of Various Types

We supply Wedge Wire Rotary Drum Screen, for screen parts to sugar mills, fertilizer and other process industries.

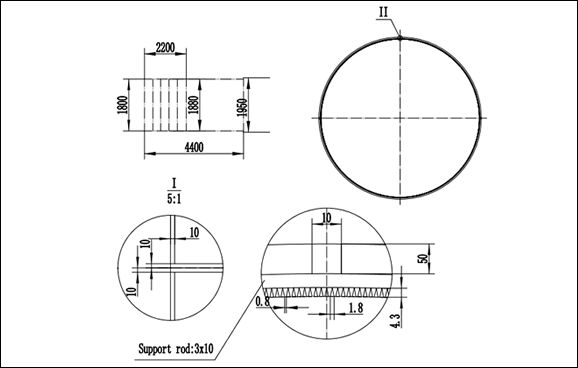

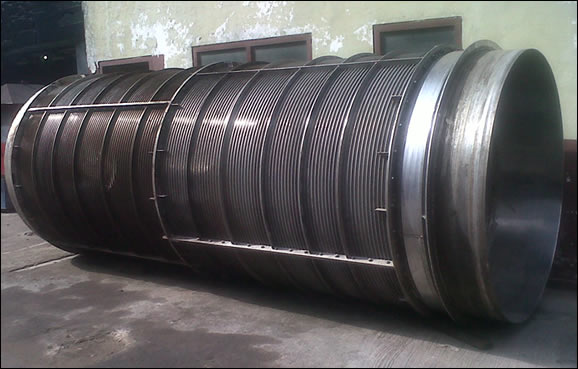

Major types as illustrated in the following drawings.

Wedge Wire Type Drum Screen
Drum screen with radial flow
Slot size -0.5 mm
Effective length of screen -150 mm
Connection -2" ANSI 600# RF
Material - stainless steel
Collapse pressure -55 bar
FOTI: Filtration Outside To Inside

Rotary Drum Screens for the Sugar Industry


Screen size: 1750mm x 1007mm


Wedgewire Slot 0.7mm, material SUS304

Other rotary drum screens we supply:

Wedge Wire DSM Screen for Screen Rotary Filter
Drum dimension 1800 x 6000 mm
Gap : 0.7 mm
Material : SS304

Rotary Drum Screen for cane sugar
Type Screen : Wedge Wire
Screen Size : 0,5mm
Model : Drum (Circle)
Lengh: 4800mm
Dia : 1820mm
Liquid : Cane Sugar Fluid
Material : Stainless Steel 304

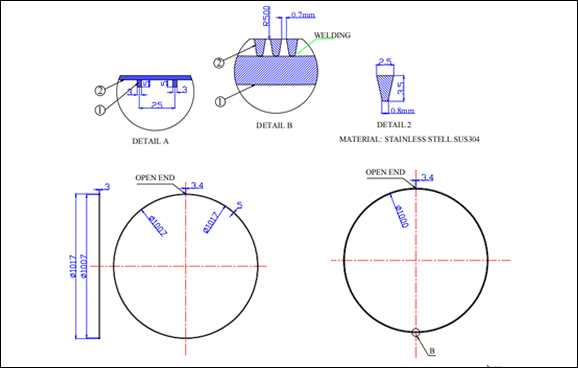

Rotary Drum Screen Plate (SQUARE HOLE)
Material : SUS 316L
Size (T) : SHEET 3MM
Size +/- 1450 mm X 1082 mm, side hole 8 mm
Size +/- 1682 mm X 1126 mm, side hole 10 mm

Micron Stainless Steel Filter Screen for Rotary Drum Filter
32 micron stainless steel filter screen
3 foot x 7 foot panel

SS 304 Rotary Drum Screen Cylinder (for trommel drums)


Aperture: 0.80 mm, ID: 1800mm, incorporated into 4 segment, length: 4400mm

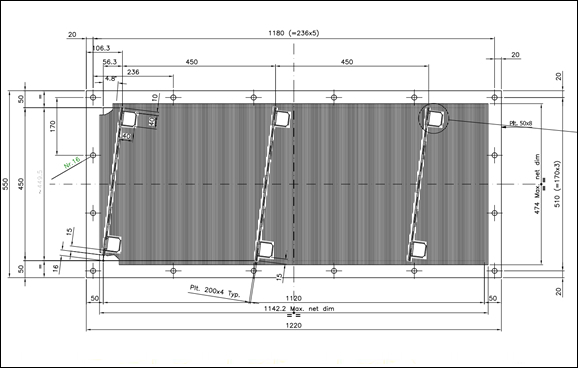

Rotary screen plates of wedge wire filters screen Drawings for rotary screen and the required wedge wire dimensions

Wedge wire dimensions: spacing between the wedge wire wires 0.5 mm. Welded to the inner frame of the rotary screen.

AISI 304L Rotary Drum Screens (wedge wire screen type) for drum filters, FOTI

Details of the tubes:
Material: AISI 304 L
length:1.000mm
outside diameter:630mm
profile (construction): 22ss/ø 50x100
slot:1mm
filtration: FOTI

Wedge Wire Rotary Trommel Drum Screen - Screen for Cane Juice
Rotary trommel drum screen made of SS 304 wedge wires with axial slot aperture 0.6 mm. Inward flow of cane juice.
Size dia 1800 mm ID x length 4500 mm
In two cylindrical half sections having proper reinforcement
75 x 10 mm end flanges to be bolted by 14 mm dia bolts.
Used for sugar mills in Pakistan.

Wire Screen for Rotex Screeners /rotex sieve frame
Export to Philipine
Rotex Screen, SS Wire 59" x 154", 12 mesh, 0.023" diameter x 1.65mm with Eyelets,
Topdeck SS430 with edging and grommets.
Rotex Wire Screen, 59" x 133", 12 mesh with Eyelets Top Deck SS430.
Rotex Sieve Frame/Spacer Asy. 15mm diameter, perforation Top Deck for Model 523A, Serial #1X8321.
Rotex Sieve Frame/ Spacer Asy. 15mm Diameter, perforation Top Deck for Model 8522DAAAMM

Trommel Drum Rotary Screens
Scope of supply:
Trommel Drum Set:
Made up / consist of 2 x 180° segments.
Each segment (S/D) 2000mm long (wire) x 180° x 1800mm I/D.
Aperture 1.0mm.
Using #69M Wedge Wire / SR475 Support rods.
Each fitted with 65mm x 10mm SS end rings and joiner bars, as well as stiffening hoops and axial bracing and gussets.
Material grade 304SS

Trommel Drum Set:
Made up / consist of 2 x 180° segments.
Each segment (S/D) 2000mm long (wire) x 180° x 1800mm I/D.
Aperture 1.2mm.
Using #69M Wedge Wire / SR475 Support rods.
Each fitted with 65mm x 10mm SS end rings and joiner bars, as well as
stiffening hoops and axial bracing and gussets.
Material grade 304SS.

SS316 Perforated screen for Screen Rotary Filter Parts
Thickness: 0.35mm, 20% open area, 0.5 hole diameter
Wide: 500mm x length: 3050mm
Max grip / border: 5mm
Use for: screen rotary vacuum filter
