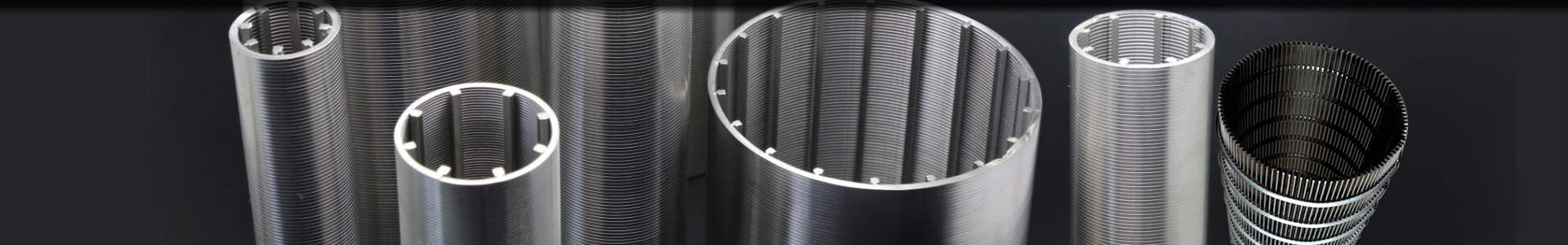

304 316 T304 SS Wedge Wire Cylinder

Cylindrical wedge wire is one of popular forms of v wire filters applied for sizing and water treatment. Most recent projects of Atlas is to supply wedgewire cylinders to Bulgaria and Singapore. Materials are commonly ss 304 and ss316.

Cylinder Wedge Wire Filter Sieve for Bulgaria

Cylindrical welded wedge wire according to the sketch in below
Commodity name: Cylindrical wedge wire filter sieve
Dimensions: +/- 30 mm, Din 280mm, Din tolerance must be +/- 1 mm min.
Length: 520mm
Material - Stainless steel AISI304
Projects: Bulgaria

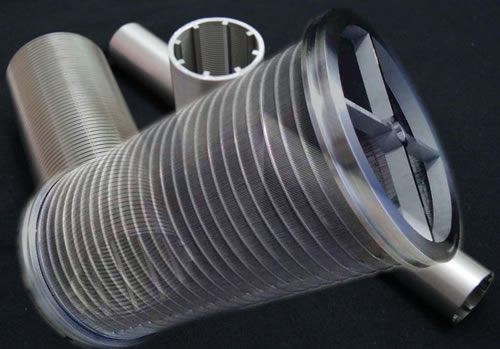

Cylinder Type Stainless Steel Wedge Wire Filter Element
Wedge wire stainless steel mesh filter
Stainless steel 316 Wedgewire Cylinder
For projects of out-to-in filtration, operating pressure 10 bar
Material: SS316
Size: 85 x 1000mm
Filtration: 100 mesh
Projects: Singapore

Applications
Wedgewire cylinders are mainly used in:
   • Energy recovery filter elements
   • Lauter tun screen used in breweries
   • Sizing and separation
   • Fluid dryer screen
   • Washing screen

Stainless Steel T304 wedge wire cylinder

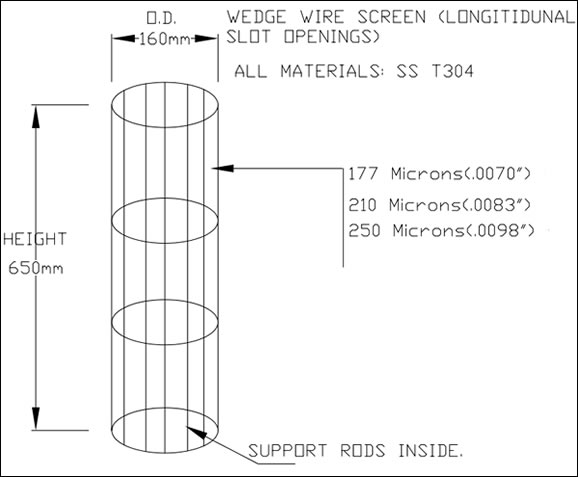

Of wedge wire screen with longitudinal slot opening 177, 210, 250 microns


Outside diameter: (O.D.) = 160mm.
Height: = 650mm
Materials: SST304
Opening slots: Longitidunal
Welded rings and support rods: Yes
Application: Beverage drinks. temp. 85 degree C. , pressure up to 6 barg.max.
177 microns flow rate 20m3/hr.
210 microns flow rate 20m3/hr.
250 microns flow rate 10m3/hr.

Cylinder Wedge Wire, with the following specifications:
304 Stainless Steel Wedge Wire Cylinder For Water Well

Outside Diameter 1.375 inches
Support rod 90
V-Wire 69
Slot Opening 0.007 inches
# Support rod 16
Material Stainless Steel 304 and 316

304 SS wedge wire 120CMI and 25x2 rods also in 304 SS,ID of cylinder 1,166m and length is 5,350m.
We can supply in off cut dimensions or in cylindrical form, wire and rods are supplied also.

0.700mm slot opening SS 304 Cylindrical WedgeWire
100mm x 900mmL x 0.700mm slot opening
With standard flange on one end and closed on the opposite end
Material: SS 304
30mm x 400mmL x 0.700mm slot opening
With standard flange on one end and closed on the opposite end SS 304

Cylindrical sand control wedge wire pipe
Wedge wire cylinders for the flow of water from inside the cylinder to outside
6 meter long, diameter 4, slot opening 1000, stainless steel 316.
3 meter long, diameter 1 slot opening 500, stainless steel 316.

Continuous slot wedge wire cylinders for sugar industries
1800 mm diameter x 4500 mm overall length slot size 0.50 mm
1800 mm diameter x 4500 mm overall length slot size 0.25 mm
The structure reinforced by externals 75mm x 10 mm joiner bars, 50 mm x 10 mm stiffeners and 75 mm x 10 mm ending ring both end. Including round bars for anti-torsion reinforcement.
The whole structure is made in two section all in AISI 304 SS material.

Wedge wire cylinder and cone 304SS, as intermediate screen specialized in serving gold and coal mining industry.

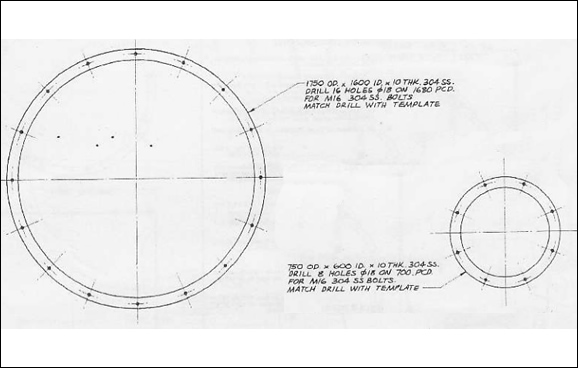

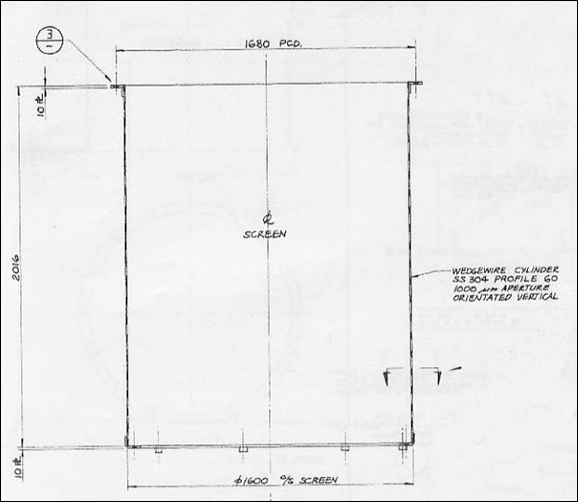

attached is the drawing details:


Cylinder 750 OD x 600 ID x 10 thickness, 304SS

Wedge wire cylinder screen SS 304 profile 60, orientated vertical


Opening slot 0.75 mm (standard)

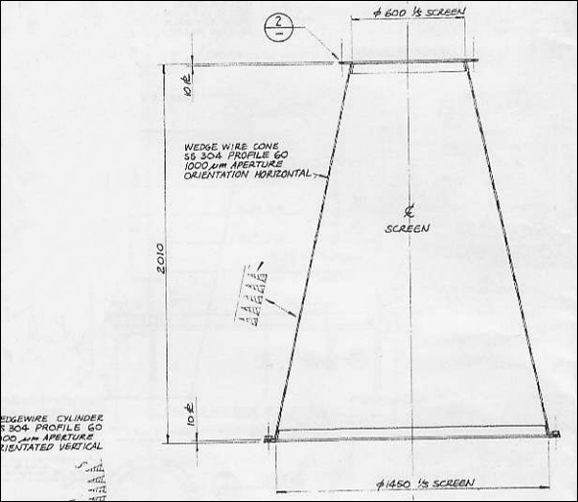

Wedge wire cone, screen mesh material SS 304.
