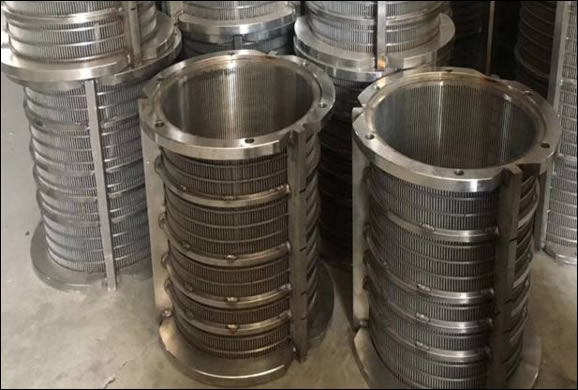

SS 304L Wedge Wire Screen with Flange and Rings for Bio-Reactor
We supply welded construction wedge wire screen for bio reactor applications.
Bio Reactor Wedge Wire Screens Export to Philipine
Wedge wire screens of the attached drawing shown for reference:
Sketch of Bio Reactor Wedge Wire Screen:
Supplied in mesh panels with following sizes:
DN 600 x 1850 mm length
DN 600 x 1950 mm length
DN 600 x 2700 mm length
Wedge Wire Screen Panels with Flange, Rings
| SS304L | Flange, dn 600 8 pn 10, din |
| SS304L | End ring, 650 od * 10 thk |
| SS304L | Forming ring, 650 od * 6 thk |
| SS304L | Wedge wire screen, 7 mm slot |
Material: SS 304L
Construction: Welded construction
Materials: This screen can be made in 2 kinds of materials for options:
SS 304 and SS 304L.
Screening direction: The screening will be from outside of the screen going inside the screen.
We can recommend the size of bar available and most economical design of wedge wire screen for bio reactor uses.
