Stainless steel flat profile wire screen has several popular profiles and forms of composing structures. It is made of stainless "V"shaped slot and SS Support "V"shaped rod, SS "V"shaped and SS "Square "shaped rod or Convex shape wire welded to form a firm panel. Profile wire panels offer great strength, precision opening and a long service life. The panel screen has a perfectly flat and smooth surface with rectangular openings.

The Support rod: Square rod, "V" profile wire, or convex shape wire.

Sizes and Drawing Illustrations of Profiles and Support Wire Rod:

PROFILE WIRE
B (mm)	1.50	1.50	2.30	2.30	1.80	3.00	3.70	3.30
H (mm)	2.20	2.50	2.70	3.60	4.30	4.70	5.60	6.30
α (°)	6° ,10° , 12°
GAP SLOT WIDTH(mm)	0.3mm-10mm

LONG WEDGE SUPPORT WIRE		Convex shape wire
B(mm)	1MM-3MM	B (mm)	3mm-5 mm
H(mm)	4MM-6MM	H (mm)	3mm-5mm

SUPPORT PROFILES
WIDTH(mm)	2.30	2.30	3.00	3.70	3.30
HEIGHT(mm)	2.70	3.60	4.70	5.60	6.30

Profile Wire Advantages:
A continuous slot opening which significantly increases the available open area, thus providing a greater access to the water bearing zone.

A ’V’ shaped profile wire which avoids clogging and ensures uninterrupted flow.
A uniform and efficient well development due to the continuous slot opening

Uses:
Profile Wire Screen finds applications in cross flow sieves, vibrating screen decking, mineral processing, surface water intake screens, fish diversion screen panels, hatchery screens, architectural decorative food processing, and flooring for malt kiln, germination, and grain drying.

Contructions:
The v wire panels can be constructed using "V "support rods Convex shape wire and Square support rods. Can be designed to optimize the open area strength and functions for each application.

We supply following profile wedge wire while Custom orders welcome.

Profile Wedge Wire Fabric (Screen)
457.2mm X 457.2mm
0.50 aperture
22SB profile wedge wire
With Q50P support rods at 25mm pitch in 304 STAINLESS STEEL

SS 304 V Profile Wedge Wire Screen
V profile : Equivalent to 91 wire
Slot Opening : 0.635MM
Support rod specification : 38MM X 2MM
Distance between support rods : 25MM Center to center
Panel size : 386MM X 1175MM

V Profile SS 316 Ti WEDGE WIRE SCREEN
Section wire : V
Slit : 0.8mm
Profile : 28 Sb
ID : dia 450mm
Length : 1000mm

Profile Wire 90V Wedge Wire Filter Screen
Length 1270 mm
OD 730 mm
Slot opening 0.13 mm
Top cover plate 710 od19 thk mm
Bottom ring plate 730 OD 610 ID 10 thk mm
V shaped profile wire 90V
All material stainless steel type 304

Profiles Shape Johnson Type Wedge wire screens
Material: Stainless Steel AISI 304
2000 x2310 mm
1000 x 2310 mm
Opening: 0.020 mm// to 2000 and 1000 mm
Support Rodes and Profiles Shape Characteristics
Profiles Shape : 1.25mm width / 2.54mm heigth
Support Rodes : 2.75mm base / 5.50mm heigth
Separation between Support Rodes, 25mm
indicate the percentage of open area.
Note: The material will be rolled.
Use: trommel : separation solid/liquid

Longitudinal profile wedge wire screens in stainless steel 316

Material: AISI 316
1000x1000 mm
Sloth width:8 mm
Longitudinal profile: 50sb
Crossbar pitch: 50 mm

Crossbar profile: Q55

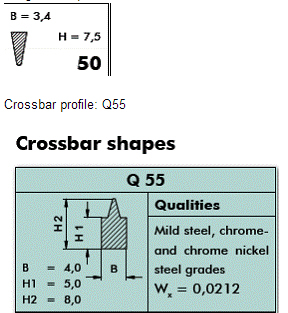

Crossbar shapes
Mild steel chrome and chrome nickel steel grades
Wx = 0,0212
For all profiles except 76 sbbz 150 sbb and Hs-profiles.
Apart from the profile shown, longi-tudinal profiles can also be used as crossbars, or flat bars 10 x 2 to 60 x 3mm. Other shapes of crossbars on request.

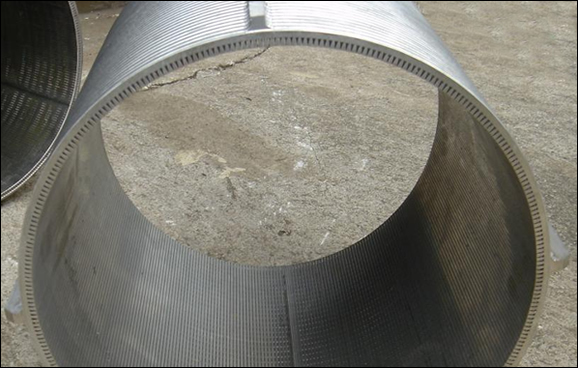

Profile Wire Cylinder
